LCL 040 050 - DC40%-stroke 5 Solenoids
Solenoid for simple operation
Solenoid for simple operation
LCL 040 050 - DC40%-stroke 5 : this solenoid from the 'Adaptables Series' range has many advantages: it is flexible (combination of numerous strokes, voltages, and duty cycles), quickly available (assembled in our production unit in Orléans, it can be delivered in about a week depending on quantities), and reliable and durable (it is our core product). It is used for sustained applications.
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 70
- Body length
- 70 mm
- Width solenoid
- 50
- Width solenoid
- 50 mm
- Coil weight
- 125
- Coil weight
- 125 g
- Height
- 40
- Height
- 40 mm
- Total weight
- 660
- Total weight
- 660 g
- Stroke
- 5
- Stroke
- 5 mm

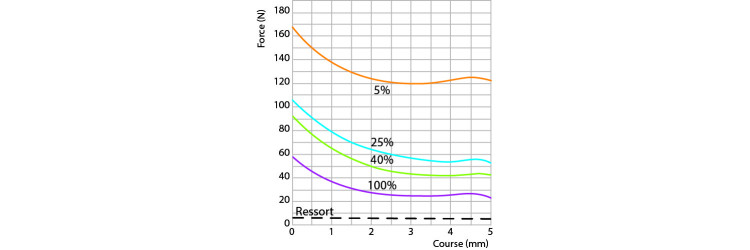

- Force at beginning of stroke
- 42
- Force at beginning of stroke
- 42 N
- Force at end of stroke
- 92
- Force at end of stroke
- 92 N
- Duration of attraction
- 66
- Duration of attraction
- 66 ms
- Recoil time
- 29
- Recoil time
- 29 ms
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Options
- -IP 54 with front and rear bellows -Outdoor return spring (on core) -Connection with DIN plug -IP65, without or with rectifier (in this case the coil is 205V DC and 230V AC power supply) -Other voltag
- Duty cycle
- 40
- Duty cycle
- 40 %
- Duration of the cycle for the calculation
- 5
- Duration of the cycle for the calculation
- 5 min
- Power
- 38
- Power
- 38 W
- Connection
- Free wires
- Insulation class
- B
- Standard voltages
- 24 ou 205
- Standard voltages
- 24 ou 205 V
- IP protection
- IP 40
