CU20-06/C - DC100% Solenoids
Solenoid for simple operation
Solenoid for simple operation

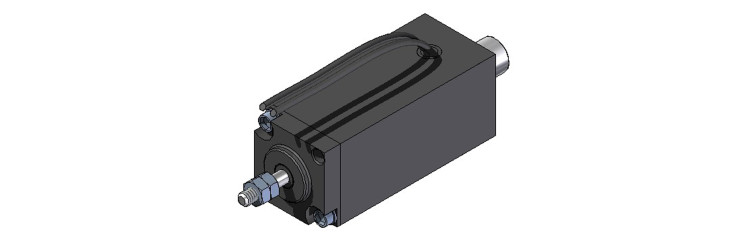

CU20-06/C - DC100%: with its machined parallelepiped design, this simple “Compact Series” electromagnet is very robust and compact. It is designed for intensive use in demanding applications. In a vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 52
- Body length
- 52 mm
- Width solenoid
- 23
- Width solenoid
- 23 mm
- Coil weight
- 18
- Coil weight
- 18 g
- Height
- 20
- Height
- 20 mm
- Total weight
- 110
- Total weight
- 110 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 0,2
- Spring force at the beginning of the stroke
- 0,2 N
- Spring force at the end of the stroke
- 0,5
- Spring force at the end of the stroke
- 0,5 N
- Options
- Other voltages and duty factors on request.
- Stroke
- 6
- Stroke
- 6 mm
- Force at beginning of stroke
- 2,1
- Force at beginning of stroke
- 2,1 N
- Force at end of stroke
- 1,5
- Force at end of stroke
- 1,5 N
- Internal return spring
- yes
- Duration of attraction
- 32
- Duration of attraction
- 32 ms
- Recoil time
- 28
- Recoil time
- 28 ms
- Duty cycle
- 100
- Duty cycle
- 100 %
- Duration of the cycle for the calculation
- 4
- Duration of the cycle for the calculation
- 4 min
- Power
- 4 W
- Power
- 4
- Connection
- Free wires
- Insulation class
- E
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP 40
