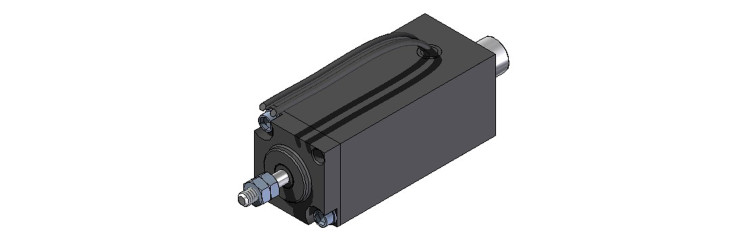

CU20-06/C - DC25% Solenoids
Solenoid for simple operation
Solenoid for simple operation
Solenoid simple maneuvering. These 'Compact Series' electro-magnets, which have a machined parallelepiped design, are very robust and compact. They are designed for intensive use in demanding applications. In upright position, consider the weight of the core.
Solenoids

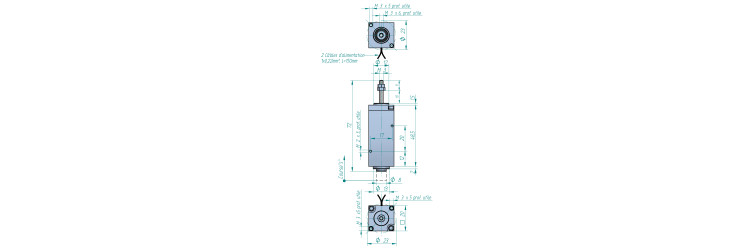

- Body length
- 52 mm
- Width solenoid
- 23 mm
- Coil weight
- 18 g
- Height
- 20 mm
- Total weight
- 110 g
- Stroke
- 6 mm

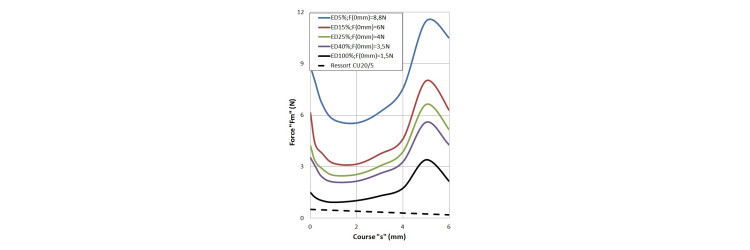

- Force at beginning of stroke
- 5,1 N
- Force at end of stroke
- 4,2 N
- Internal return spring
- yes
- Duration of attraction
- 26 ms
- Recoil time
- 25 ms
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 0,2 N
- Spring force at the end of the stroke
- 0,5 N
- Options
- Other voltages and duty factors on request.
- Product range
- Solenoid for simple operation
- Duty cycle
- 25 %
- Duration of the cycle for the calculation
- 4 min
- Power
- 16 W
- Connection
- Free wires
- Insulation class
- E
- Standard voltages
- 24 V
- IP protection
- IP 40
