CU20-06/C - DC5% Solenoids
Solenoid for simple operation
Solenoid for simple operation

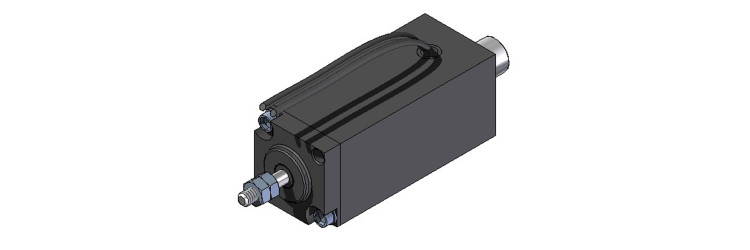

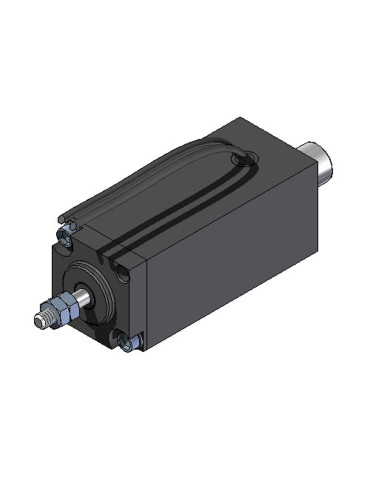

CU20-06/C - DC5%: with its machined parallelepiped design, this simple “Compact Series” electromagnet is very robust and compact. It is designed for intensive use in demanding applications. In a vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for simple operation

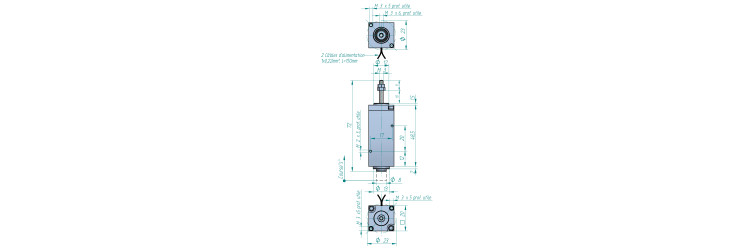

- Body length
- 52
- Body length
- 52 mm
- Width solenoid
- 23
- Width solenoid
- 23 mm
- Coil weight
- 18
- Coil weight
- 18 g
- Height
- 20
- Height
- 20 mm
- Total weight
- 110
- Total weight
- 110 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 0,2 N
- Spring force at the beginning of the stroke
- 0,2
- Spring force at the end of the stroke
- 0,5
- Spring force at the end of the stroke
- 0,5 N
- Options
- Other voltages and duty factors on request.
- Stroke
- 6
- Stroke
- 6 mm
- Force at beginning of stroke
- 10,5
- Force at beginning of stroke
- 10,5 N
- Force at end of stroke
- 8,8
- Force at end of stroke
- 8,8 N
- Internal return spring
- yes
- Duration of attraction
- 23
- Duration of attraction
- 23 ms
- Recoil time
- 24
- Recoil time
- 24 ms
- Duty cycle
- 5
- Duty cycle
- 5 %
- Duration of the cycle for the calculation
- 4
- Duration of the cycle for the calculation
- 4 min
- Power
- 80
- Power
- 80 W
- Connection
- Free wires
- Insulation class
- E
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP 40
