CU30-10/C - DC5% Solenoids
Solenoid for simple operation
Solenoid for simple operation

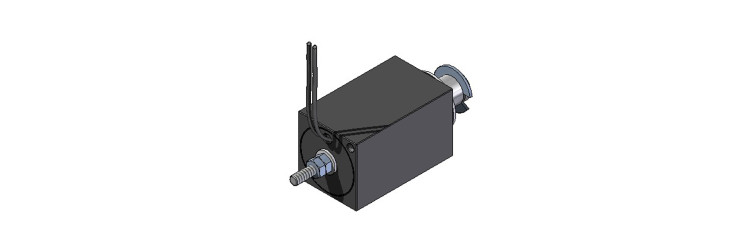

CU30-10/C - DC5%: with its machined parallelepiped design, this simple “Compact Series” electromagnet is very robust and compact. It is designed for intensive use in demanding applications. In a vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 53
- Body length
- 53 mm
- Width solenoid
- 30
- Width solenoid
- 30 mm
- Coil weight
- 40
- Coil weight
- 40 g
- Height
- 30
- Height
- 30 mm
- Total weight
- 290
- Total weight
- 290 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 0,95
- Spring force at the beginning of the stroke
- 0,95 N
- Spring force at the end of the stroke
- 1,44
- Spring force at the end of the stroke
- 1,44 N
- Options
- Other voltages and duty factors on request.
- Stroke
- 10
- Stroke
- 10 mm

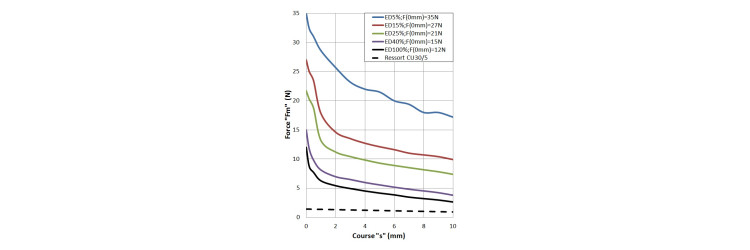

- Force at beginning of stroke
- 17
- Force at beginning of stroke
- 17 N
- Force at end of stroke
- 37
- Force at end of stroke
- 37 N
- Internal return spring
- yes
- Duration of attraction
- 41
- Duration of attraction
- 41 ms
- Recoil time
- 32
- Recoil time
- 32 ms
- Duty cycle
- 5
- Duty cycle
- 5 %
- Duration of the cycle for the calculation
- 4
- Duration of the cycle for the calculation
- 4 min
- Power
- 150
- Power
- 150 W
- Connection
- Free wires
- Insulation class
- E
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP 40
