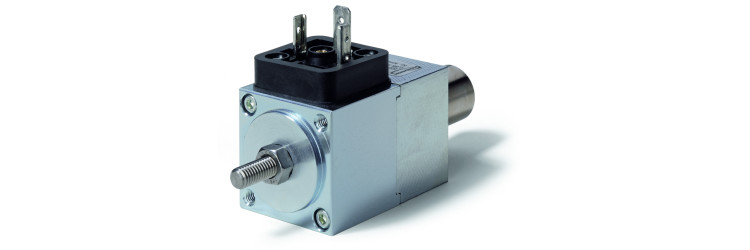

LHP 035 053 - DC100%-stroke 15 Solenoids
Solenoid for simple operation
Solenoid for simple operation
LHP 035 053 - DC100%-stroke 15: this simple operating solenoid from the 'High Performance Series' works in a similar way to the CU, but is based on a completely innovative magnetic principle. It offers excellent energy efficiency, providing very high forces for a small footprint. Many different strokes are available for the same size. In the vertical position, take the weight of the core into account.
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 60
- Body length
- 60 mm
- Width solenoid
- 35 mm
- Width solenoid
- 35
- Coil weight
- 110
- Coil weight
- 110 g
- Height
- 35
- Height
- 35 mm
- Total weight
- 450
- Total weight
- 450 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Options
- -IP 54 with bellows (and sockets) -Internal return spring -Recording with DIN plug -IP65 -Other voltages and duty factors on request.
- Stroke
- 15
- Stroke
- 15 mm
- Internal return spring
- no
- Duration of attraction
- 137
- Duration of attraction
- 137 ms
- Recoil time
- 82
- Recoil time
- 82 ms
- Duty cycle
- 100
- Duty cycle
- 100 %
- Duration of the cycle for the calculation
- 5
- Duration of the cycle for the calculation
- 5 min
- Power
- 20
- Power
- 20 W
- Connection
- Free wires
- Insulation class
- F
- Standard voltages
- 24 ou 205
- Standard voltages
- 24 ou 205 V
- IP protection
- IP 40
