ECM13-10T - DC15% Solenoids
Solenoid for simple operation
Solenoid for simple operation

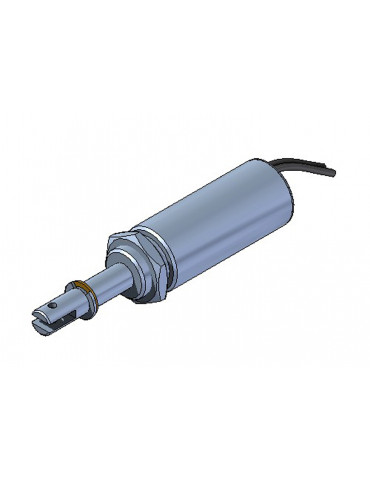

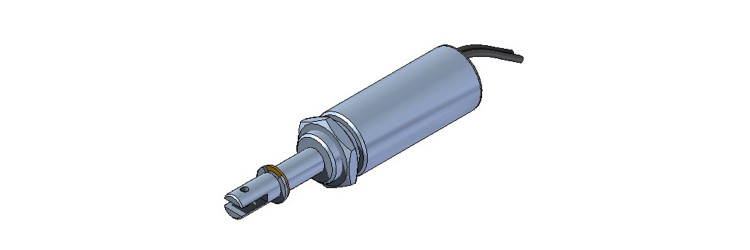

ECM13-10T - DC15% : with its machined cylindrical design, this robust single-action electromagnet can be easily installed and secured in confined spaces. The push or pull function is provided by different devices. In the vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for simple operation

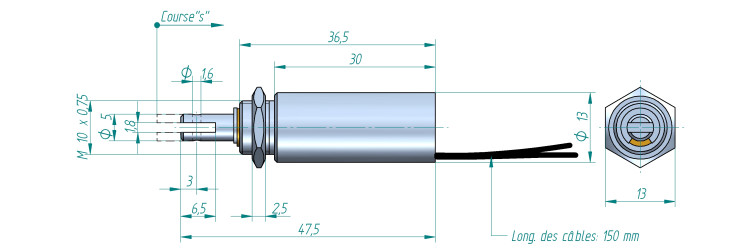

- Body length
- 36,5
- Body length
- 36,5 mm
- Coil weight
- 10
- Coil weight
- 10 g
- Total weight
- 40 g
- Total weight
- 40
- Product range
- Solenoid for simple operation
- Function
- Pulling
- Diameter
- 13
- Diameter
- 13 mm
- Options
- Other voltages and duty factors on request.
- Stroke
- 10
- Stroke
- 10 mm

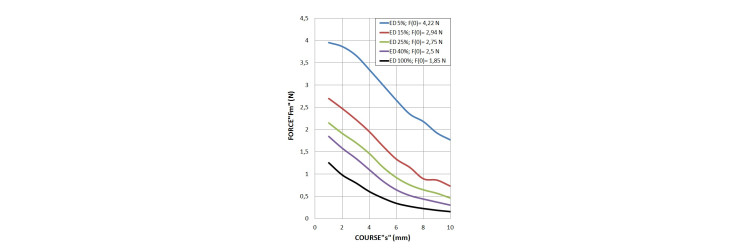

- Force at beginning of stroke
- 0,7
- Force at beginning of stroke
- 0,7 N
- Force at end of stroke
- 2,94
- Force at end of stroke
- 2,94 N
- Internal return spring
- no
- Duration of attraction
- 29
- Duration of attraction
- 29 ms
- Recoil time
- 26
- Recoil time
- 26 ms
- Duty cycle
- 15
- Duty cycle
- 15 %
- Duration of the cycle for the calculation
- 2 min
- Duration of the cycle for the calculation
- 2
- Power
- 26
- Power
- 26 W
- Connection
- Free wires
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP30
