ECH50-16 -DC100% Solenoids
Solenoid for simple operation
Solenoid for simple operation

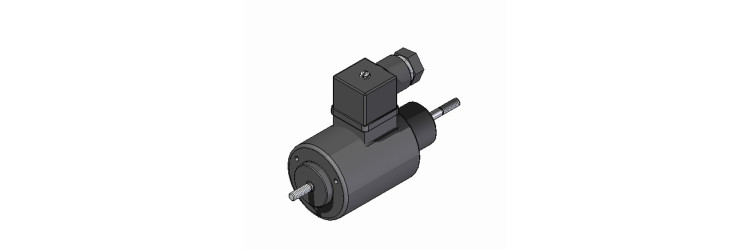

ECH50-16 -DC100% : with its machined cylindrical design, this robust single-action electromagnet delivers high forces. In the vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 94
- Body length
- 94 mm
- Coil weight
- 120
- Coil weight
- 120 g
- Total weight
- 750
- Total weight
- 750 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 2,7
- Spring force at the beginning of the stroke
- 2,7 N
- Spring force at the end of the stroke
- 4,4
- Spring force at the end of the stroke
- 4,4 N
- Diameter
- 50
- Diameter
- 50 mm
- Options
- Other voltages and duty factors on request.
- Stroke
- 16
- Stroke
- 16 mm
- Force at beginning of stroke
- 18,5
- Force at beginning of stroke
- 18,5 N
- Force at end of stroke
- 44
- Force at end of stroke
- 44 N
- Internal return spring
- yes
- Duration of attraction
- 203
- Duration of attraction
- 203 ms
- Recoil time
- 131
- Recoil time
- 131 ms
- Duty cycle
- 100
- Duty cycle
- 100 %
- Duration of the cycle for the calculation
- 3
- Duration of the cycle for the calculation
- 3 min
- Power
- 19 W
- Power
- 19
- Connection
- IP65 connector
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP40
