ECH50-16 -DC25% Solenoids
Solenoid for simple operation
Solenoid for simple operation

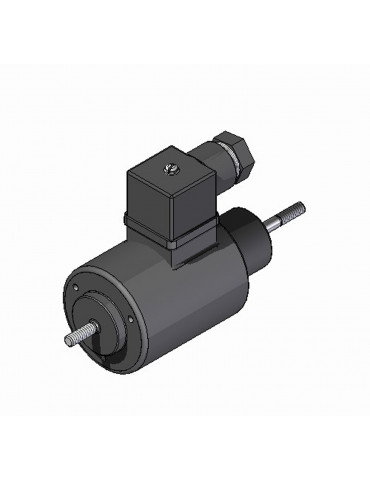

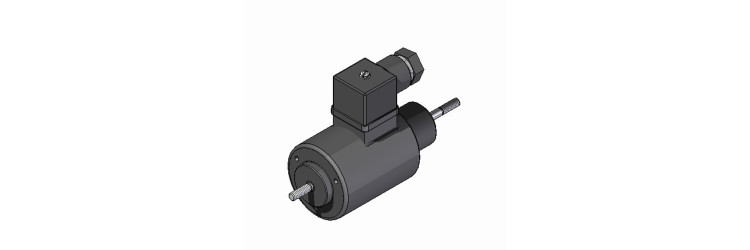

ECH50-16 -DC25% : with its machined cylindrical design, this robust single-action electromagnet delivers high forces. In the vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for simple operation

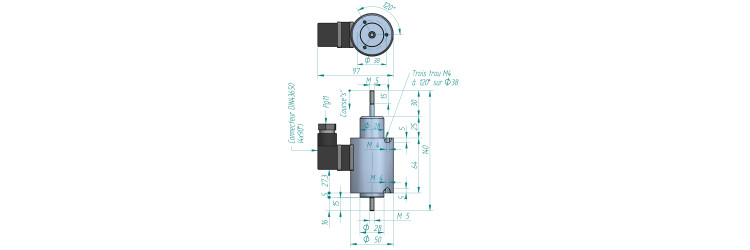

- Body length
- 94
- Body length
- 94 mm
- Coil weight
- 120 g
- Coil weight
- 120
- Total weight
- 750
- Total weight
- 750 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 2,7
- Spring force at the beginning of the stroke
- 2,7 N
- Spring force at the end of the stroke
- 4,4
- Spring force at the end of the stroke
- 4,4 N
- Diameter
- 50
- Diameter
- 50 mm
- Options
- Other voltages and duty factors on request.
- Stroke
- 16
- Stroke
- 16 mm

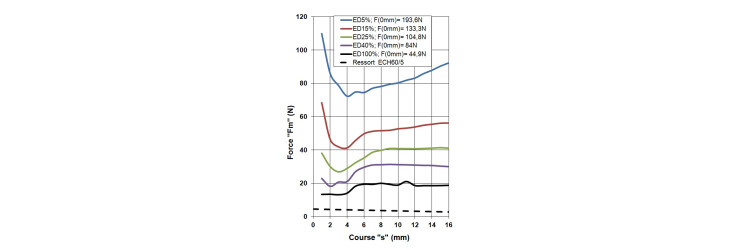

- Force at beginning of stroke
- 41
- Force at beginning of stroke
- 41 N
- Force at end of stroke
- 104
- Force at end of stroke
- 104 N
- Internal return spring
- yes
- Duration of attraction
- 137
- Duration of attraction
- 137 ms
- Recoil time
- 92
- Recoil time
- 92 ms
- Duty cycle
- 25
- Duty cycle
- 25 %
- Duration of the cycle for the calculation
- 3
- Duration of the cycle for the calculation
- 3 min
- Power
- 68
- Power
- 68 W
- Connection
- IP65 connector
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP40
