ECH65-15- DC100% Solenoids
Solenoid for simple operation
Solenoid for simple operation

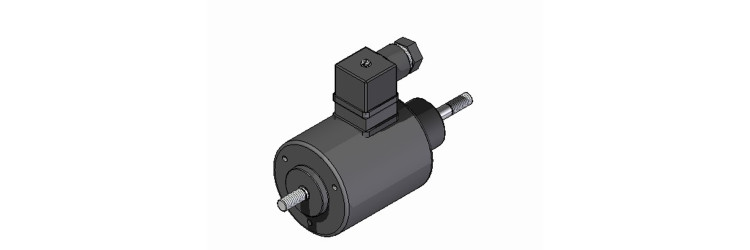

ECH65-15- DC100% : with its machined cylindrical design, this robust single-action electromagnet delivers high forces. In the vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 108,5
- Body length
- 108,5 mm
- Coil weight
- 190 g
- Coil weight
- 190
- Total weight
- 1700
- Total weight
- 1700 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 5,4
- Spring force at the beginning of the stroke
- 5,4 N
- Spring force at the end of the stroke
- 21,7
- Spring force at the end of the stroke
- 21,7 N
- Diameter
- 65
- Diameter
- 65 mm
- Options
- Other voltages and duty factors on request.
- Stroke
- 15
- Stroke
- 15 mm
- Force at beginning of stroke
- 46
- Force at beginning of stroke
- 46 N
- Force at end of stroke
- 152
- Force at end of stroke
- 152 N
- Internal return spring
- yes
- Duration of attraction
- 291
- Duration of attraction
- 291 ms
- Recoil time
- 181
- Recoil time
- 181 ms
- Duty cycle
- 100
- Duty cycle
- 100 %
- Duration of the cycle for the calculation
- 3
- Duration of the cycle for the calculation
- 3 min
- Power
- 30
- Power
- 30 W
- Connection
- IP65 connector
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP40
