ECH90-25- DC15% Solenoids
Solenoid for simple operation
Solenoid for simple operation

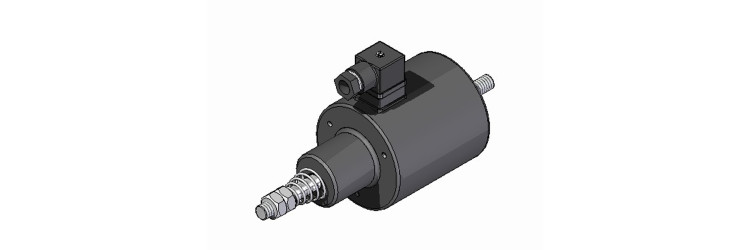

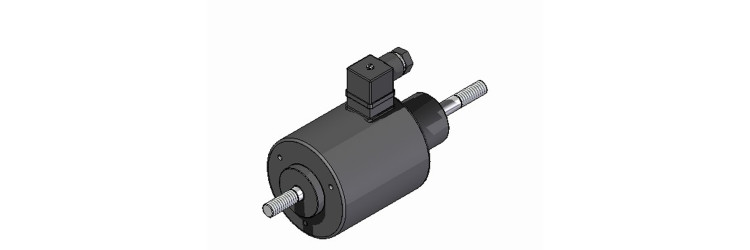

ECH90-25- DC15% : with its machined cylindrical design, this robust single-action electromagnet delivers high forces. In the vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 153
- Body length
- 153 mm
- Coil weight
- 650
- Coil weight
- 650 g
- Total weight
- 5200
- Total weight
- 5200 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 18
- Spring force at the beginning of the stroke
- 18 N
- Spring force at the end of the stroke
- 48,5
- Spring force at the end of the stroke
- 48,5 N
- Diameter
- 90
- Diameter
- 90 mm
- Options
- Other voltages and duty factors on request.
- Stroke
- 25
- Stroke
- 25 mm

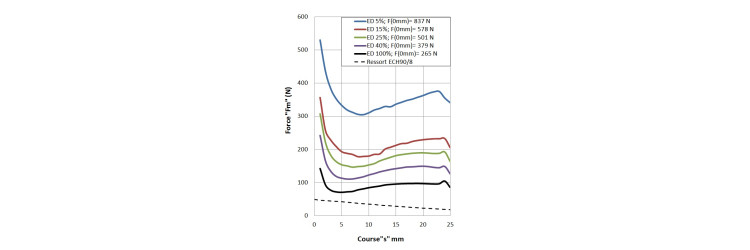

- Force at beginning of stroke
- 205
- Force at beginning of stroke
- 205 N
- Force at end of stroke
- 578
- Force at end of stroke
- 578 N
- Internal return spring
- yes
- Duration of attraction
- 332
- Duration of attraction
- 332 ms
- Recoil time
- 208
- Recoil time
- 208 ms
- Duty cycle
- 15
- Duty cycle
- 15 %
- Duration of the cycle for the calculation
- 5
- Duration of the cycle for the calculation
- 5 min
- Power
- 300
- Power
- 300 W
- Connection
- IP65 connector
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP40
