ECH110-45-DC25% Solenoids
Solenoid for simple operation
Solenoid for simple operation

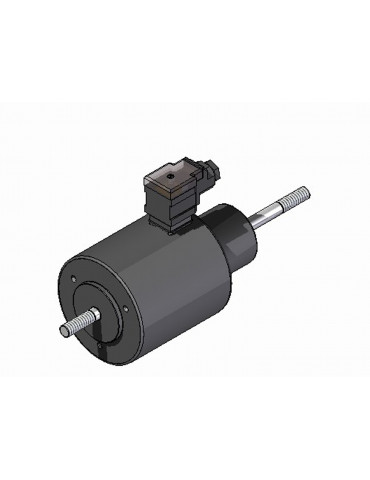

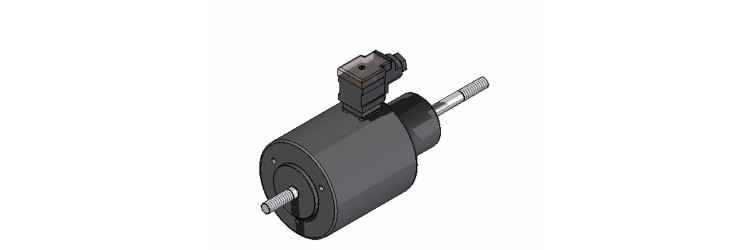

ECH110-45-DC25% : with its machined cylindrical design, this robust single-action electromagnet delivers high forces. In the vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 183,5
- Body length
- 183,5 mm
- Coil weight
- 1100
- Coil weight
- 1100 g
- Total weight
- 7300
- Total weight
- 7300 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Diameter
- 110
- Diameter
- 110 mm
- Options
- Other voltages and duty factors on request.
- Stroke
- 45
- Stroke
- 45 mm
- Force at beginning of stroke
- 165
- Force at beginning of stroke
- 165 N
- Force at end of stroke
- 800
- Force at end of stroke
- 800 N
- Internal return spring
- no
- Duration of attraction
- 517
- Duration of attraction
- 517 ms
- Recoil time
- 326
- Recoil time
- 326 ms
- Duty cycle
- 25
- Duty cycle
- 25 %
- Duration of the cycle for the calculation
- 5
- Duration of the cycle for the calculation
- 5 min
- Power
- 260
- Power
- 260 W
- Connection
- IP65 connector
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP40
