ECH150-40- DC25% Solenoids
Solenoid for simple operation
Solenoid for simple operation

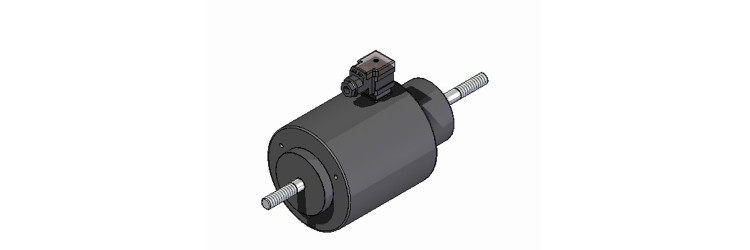

ECH150-40- DC25% : with its machined cylindrical design, this robust single-action electromagnet delivers high forces. In the vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 238
- Body length
- 238 mm
- Coil weight
- 4600
- Coil weight
- 4600 g
- Total weight
- 21000
- Total weight
- 21000 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Diameter
- 150
- Diameter
- 150 mm
- Options
- Other voltages and duty factors on request.
- Stroke
- 40
- Stroke
- 40 mm
- Force at beginning of stroke
- 580
- Force at beginning of stroke
- 580 N
- Force at end of stroke
- 1850
- Force at end of stroke
- 1850 N
- Internal return spring
- no
- Duration of attraction
- 877
- Duration of attraction
- 877 ms
- Recoil time
- 545
- Recoil time
- 545 ms
- Duty cycle
- 25
- Duty cycle
- 25 %
- Duration of the cycle for the calculation
- 5
- Duration of the cycle for the calculation
- 5 min
- Power
- 460
- Power
- 460 W
- Connection
- IP65 connector
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP40
