ECR65-15-DC40% Solenoids
Solenoid for double maneuvering
Solenoid for double maneuvering

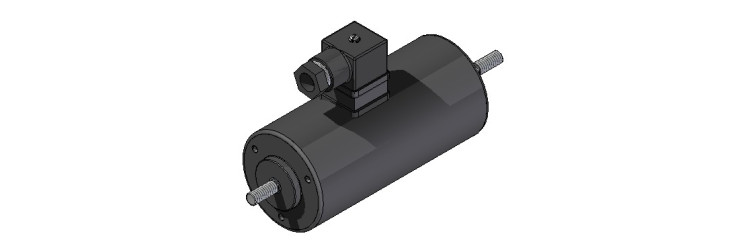

The dual-action dual cylindrical solenoid allows maneuvering in both directions. Due to lack of current in the 2 coils of this device, the core becomes free again and does not maintain its position of end of race. It is compact and robust. In vertical position, take into account the weight of the core.
Solenoids

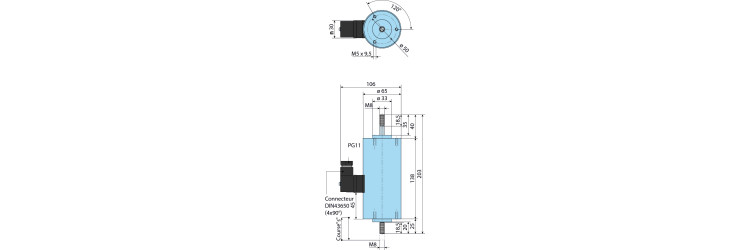

- Body length
- 148 mm
- Coil weight
- 350 g
- Total weight
- 2800 g
- Stroke
- 15 mm

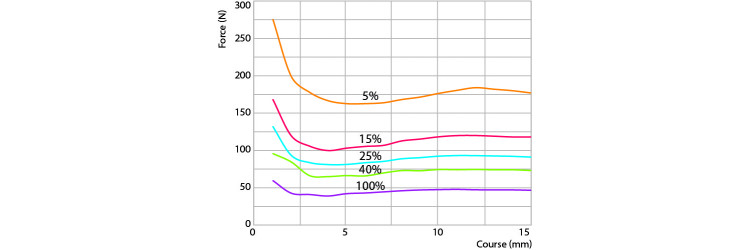

- Force at beginning of stroke
- 73 N
- Force at end of stroke
- 199 N
- Internal return spring
- no
- Duration of attraction
- 228 ms
- Recoil time
- 228 ms
- Product range
- Solenoid for double maneuvering
- Function
- Pulling/pushing
- Diameter
- 65 mm
- Options
- Other voltages and duty factors on request.
- Product range
- Solenoid for double maneuvering
- Duty cycle
- 40 %
- Duration of the cycle for the calculation
- 5 min
- Power
- 75 W
- Connection
- IP65 connector
- Insulation class
- B
- Standard voltages
- 24 V
- IP protection
- IP40
