ERB35-05/N-DC20% Solenoids
Monostable solenoid
Monostable solenoid

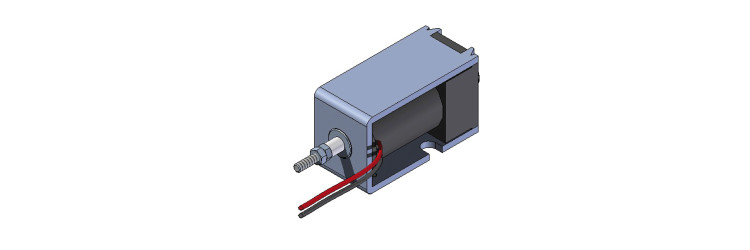

ERB35-05/N-DC20%: this electromagnet from the ‘Monostable Series’ range has a monostable function. When current is passed through the coil, the core is attracted. Once it reaches the internal stop, it is held in place by a permanent magnet without the need for current. To remove the core from the body, the coil is supplied with reverse current (canceling the magnet field) and an external force (e.g., spring) acts on the core to return it to its initial position. In the vertical position, take the weight of the core into account.
Solenoids
- Product range
- Monostable solenoid

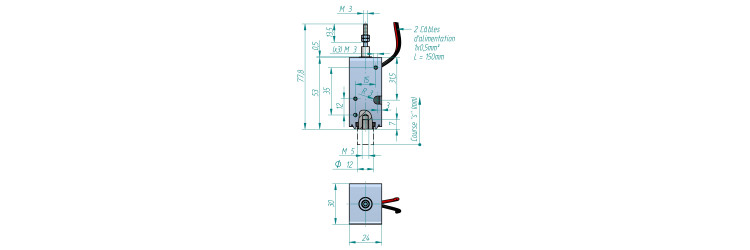

- Body length
- 53,5
- Body length
- 53,5 mm
- Width solenoid
- 24
- Width solenoid
- 24 mm
- Coil weight
- 40
- Coil weight
- 40 g
- Height
- 30
- Height
- 30 mm
- Total weight
- 165
- Total weight
- 165 g
- Product range
- Monostable solenoid
- Function
- Pulling/pushing

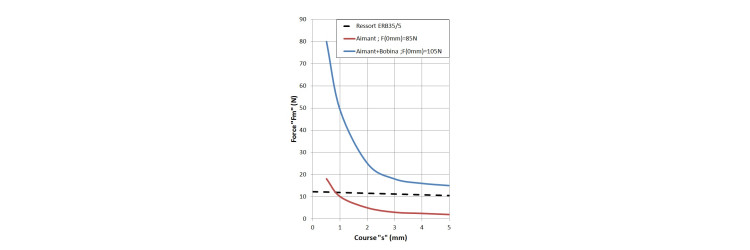

- Spring force at the beginning of the stroke
- 10
- Spring force at the beginning of the stroke
- 10 N
- Spring force at the end of the stroke
- 11
- Spring force at the end of the stroke
- 11 N
- Magnet + coil force at 0 mm
- 85
- Magnet + coil force at 0 mm
- 105 N
- Magnet force at 0 mm
- 105
- Options
- Other voltages and duty factors on request.
- Stroke
- 5
- Stroke
- 5 mm
- Force at beginning of stroke
- 15 N
- Force at beginning of stroke
- 15
- Force at end of stroke
- 105
- Force at end of stroke
- 105 N
- Internal return spring
- yes
- Duration of attraction
- 46
- Duration of attraction
- 46 ms
- Recoil time
- 37
- Recoil time
- 37 ms
- Duty cycle
- 20
- Duty cycle
- 20 %
- Duration of the cycle for the calculation
- 3
- Duration of the cycle for the calculation
- 3 min
- Power
- 35
- Power
- 35 W
- Connection
- Free wires
- Insulation class
- Y
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP00
