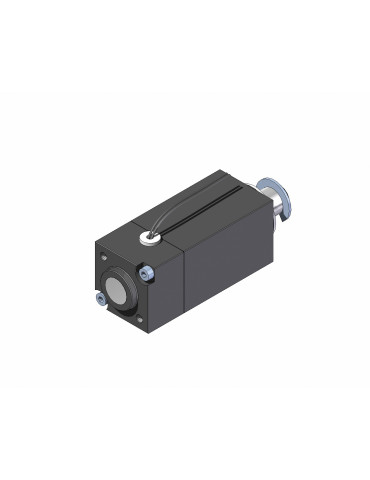

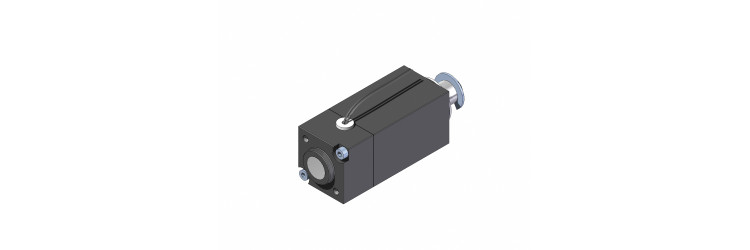

CU30-10/CP-DC 25% Solenoids
Solenoid for simple operation
Solenoid for simple operation
CU30-10/CP-DC 25% : this simple operating electromagnet from the ‘Lock Series’ range is designed for locking applications. It can withstand high radial forces. It is equipped with an internal spring. Some are standard pull types and others are push types.
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 73
- Body length
- 73 mm
- Width solenoid
- 30
- Width solenoid
- 30 mm
- Coil weight
- 60 g
- Coil weight
- 60
- Height
- 30
- Height
- 30 mm
- Total weight
- 330
- Total weight
- 330 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Options
- Other voltages and duty factors on request.
- Other characteristics
- Maximum allowable radial force: 3000N
- Stroke
- 10
- Stroke
- 10 mm
- Internal return spring
- Integrated with DC 25%: 1,8 to 2,8N
- Duration of attraction
- 48
- Duration of attraction
- 48 ms
- Recoil time
- 38
- Recoil time
- 38 ms
- Duty cycle
- 25
- Duty cycle
- 25 %
- Duration of the cycle for the calculation
- 4
- Duration of the cycle for the calculation
- 4 min
- Power
- 29
- Power
- 29 W
- Connection
- 150mm free wires
- Insulation class
- E
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP40
