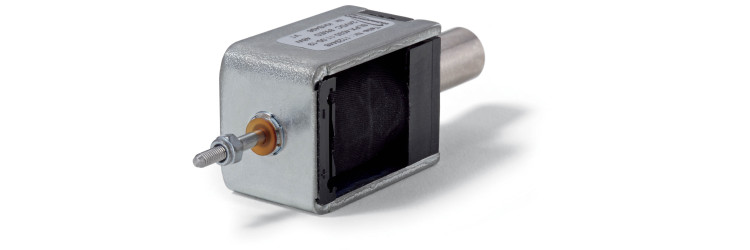

LCM 010 015-DC 40% Solenoids
Monostable solenoid
Monostable solenoid
Solenoids 'Monostables Series' have a monostable function. By emitting current into the coil, the nucleus is attracted. Arrived in internal stop, it is maintained in the body by a permanent magnet and without power. To bring out the core of the body, the coil will be fed with a reverse current (thus canceling the magnet's field) and an external force (eg spring) will act on the core to bring it back to its original position. In upright position, consider the core weight.
Solenoids
- Body length
- 26 mm
- Width solenoid
- 10 mm
- Coil weight
- 5 g
- Height
- 15 mm
- Total weight
- 22 g
- Stroke
- 2 mm
- Internal return spring
- no
- Duration of attraction
- 37 ms
- Product range
- Monostable solenoid
- Function
- Pulling/pushing
- Options
- Other voltages and duty factors on request.
- Product range
- Monostable solenoid
- Duty cycle
- 40 %
- Duration of the cycle for the calculation
- 5 min
- Power
- 4,5 W
- Connection
- Free wires
- Insulation class
- E
- Standard voltages
- 24 V
- IP protection
- IP00
