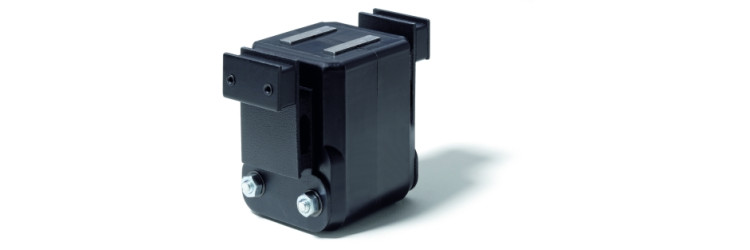

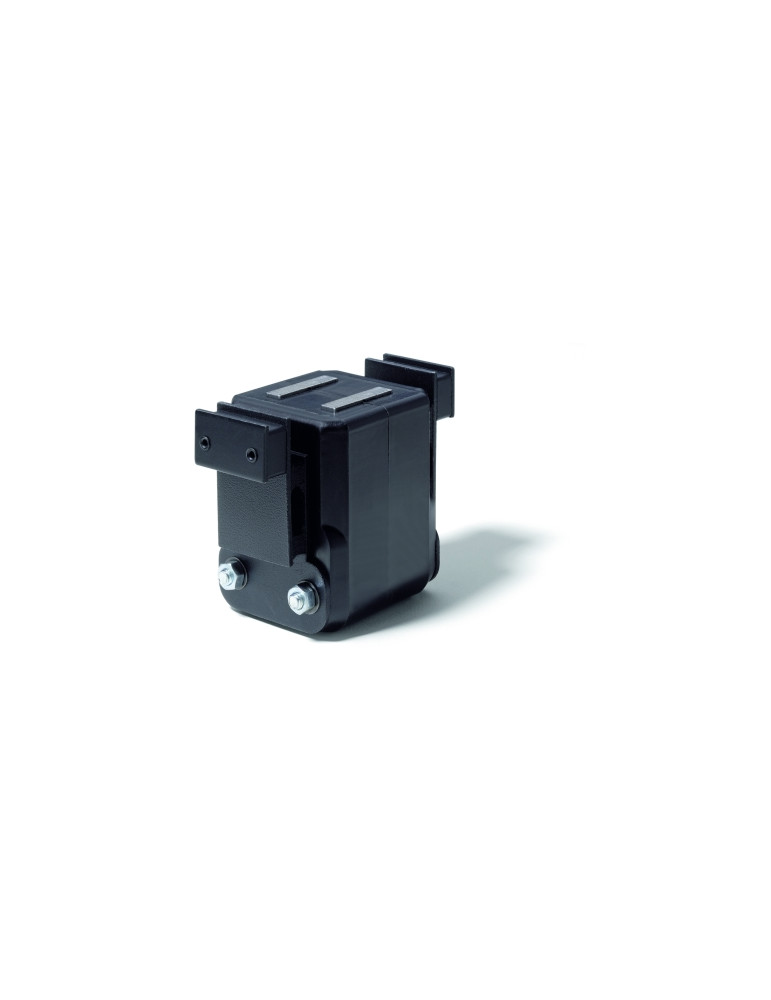

OSR 501 001

Magnet vibrator

The magnetic body of the vibrator powered with AC 230V AC produces motion. The attraction is alternative between the vibrator and the magnetic steel piece vis-à-vis induces the vibration. The amplitude of the movement is adjusted by means of a VF6 voltage variator. Fixing will be done by the 2 legs integrated in the vibrator and equipped with permanent magnet of maintenance on the element to be vibrated. The adjustment of the gap will be done automatically thanks to these tabs. In this assembly, the mass of the vibrator and its inertia in motion generate the vibration.
Vibrators
Grayed out functions require you to be logged in to your account
login to my account
Dimensional plan
Product range
Magnet vibrator
Frequency
50 Hz
Operating protection class
IP 60
Power consumption
36 VA
Connection
Bi-conductor cable
Insulation class
E
Standard voltage
230V AC/50 Hz single phase
Max. air gap
3 mm
Magnetic force at 1 mm air gap
10 N
Magnetic force at 2 mm air gap
5 N
Magnetic force at 3 mm air gap
3,5 N
Total mass
0,56 kg
