86 611 16P Brakes and clutches
No-current brake ‘High Torque’
No-current brake ‘High Torque’

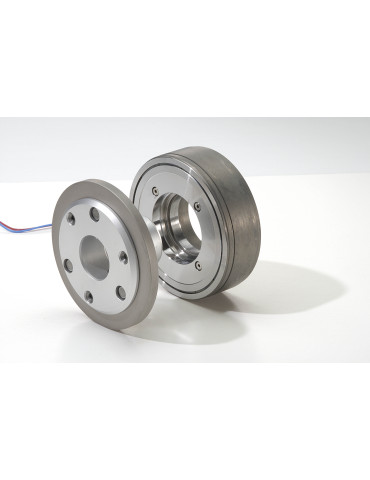

86 611 16P: this no-current brake 'High Torque' has the following advantages: - very high static torque (thanks to the rare earth permanent magnets) for a small footprint (very flat brake) - zero angular play at stop - zero residual torque (in all mounting positions) . Often made according to plans and specific indications.
Brakes and clutches
- Product range
- No-current brake ‘High Torque’
- Fastening
- By tapped holes
- Minimum static torque
- 160
- Minimum static torque
- 160 N⋅m
- Air gap S
- 0,3
- Air gap S
- 0,3 mm
- Dimension f1
- M6
- Dimension f1
- M6 mm
- Dimension g1
- 0 mm
- Dimension g2
- 8*45°
- Dimension e2
- 120
- Dimension e2
- 120 mm
- Dimension f2
- M6
- Dimension f2
- M6 mm
- Dimension g3
- 30
- Dimension g3
- 30 mm
- Dimension g4
- 6*60°
- Dimension b
- 58,8
- Dimension b
- 58,8 mm
- Other characteristics
- -Static torque greater than H version thanks to increased polar rays -Optimization of flux and polar surfaces thanks to a patented design -Couple constant in the permissible temperature range -Better
- Dimension a
- 158
- Dimension a
- 158 mm
- Dimension e1
- 90
- Dimension e1
- 90 mm
- Product range
- No-current brake ‘High Torque’
- Nominal voltage
- 24
- Nominal voltage
- 24 VDC
- Power rating
- 39
- IP protection
- IP 00
- Connection
- Free wires (200 mm)
- Insulation class
- F
