86 621 03P Brakes and clutches

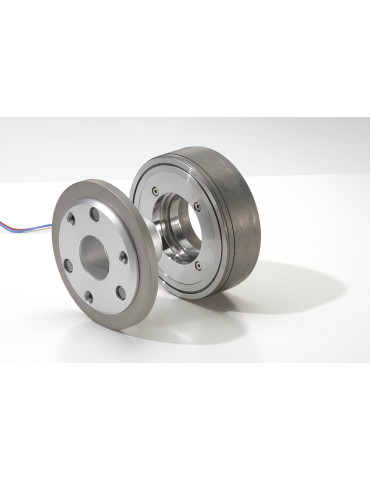

No-current brake ‘High Torque’
No-current brake ‘High Torque’
These brakes have the following advantages: - very high static torque (thanks to the rare earth permanent magnets) for a small footprint (very flat brake) - zero angular play at stop - zero residual torque (in all mounting positions) . Often made according to plans and specific indications.
Brakes and clutches
- Minimum static torque
- 0,4 N⋅m
- Air gap S
- 0,1 mm
- Dimension f1
- M3 mm
- Dimension g1
- 20 mm
- Dimension g2
- 3*120°
- Other characteristics
- -Static torque greater than H version thanks to increased polar rays -Optimization of flux and polar surfaces thanks to a patented design -Couple constant in the permissible temperature range -Better
- Dimension e1
- 27 mm
- Product range
- No-current brake ‘High Torque’
- Product range
- No-current brake ‘High Torque’
- Fastening
- By flange
- Nominal voltage
- 24 VDC
- IP protection
- IP 00
- Connection
- Free wires (200 mm)
- Insulation class
- F
