Brake with current emission
Brake with current emission

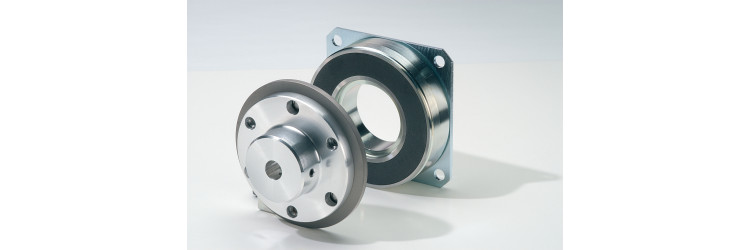

86 111 14: this brake with current emission has the following advantages: - high torque for reduced space requirement - almost zero angular clearance when stopped - zero residual torque (in all mounting positions) - accepts dynamic braking.
Brakes and clutches
- Product range
- Brake with current emission
- Fastening
- By tapped holes
- Dimension b5
- 140
- Dimension b5
- 140 mm
- Dimension d3
- 110
- Dimension d3
- 110 mm
- Dimension d5
- 120
- Dimension d5
- 120 mm
- Dimension d7
- 170,5
- Dimension d7
- 170,5 mm
- Weight without member
- 4
- Weight without member
- 4 kg
- Air gap S0
- 0,3
- Air gap S0
- 0,3 mm
- Dimension d2
- 72
- Dimension d2
- 72 mm
- Dimension d6
- 155
- Dimension d6
- 155 mm
- Dynamic torque M2
- 60
- Dynamic torque M2
- 60 N⋅m
- Lifetime (indicative values) MJ
- 900
- Lifetime (indicative values) MJ
- 900 MJ
- Dimension b4
- 4
- Dimension b4
- 4 mm
- Dimension d8
- 9
- Dimension d8
- 9 mm
- Dimension b
- 37,5
- Dimension b
- 37,5 mm
- Dimension b2
- 6,5
- Dimension b2
- 6,5 mm
- Dimension d
- 140
- Dimension d
- 140 mm
- Dimension L
- 400
- Dimension L
- 400 mm
- Dimension ?
- 6*60°
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B300 or 86 XXX ... B400 (more details in the catalog for download).
- Dimension d1
- 134
- Dimension d1
- 134 mm
- Dimension M
- 6 M5*8
- Dimension M
- 6 M5*8 mm
- Dimension b1
- 33,5
- Dimension b1
- 33,5 mm
- Dimension b3
- 2,5
- Dimension b3
- 2,5 mm
- Dimension ?
- 4*90°
- Product range
- Brake with current emission
- Maximum speed nmax
- 3600
- Maximum speed nmax
- 3600 min⁻¹
- Permissible friction work per hour P max
- 700
- Permissible friction work per hour P max
- 700 kJ/h
- Permissible friction work per operation W max
- 53
- Permissible friction work per operation W max
- 53 kJ
- Response time for breaking t2
- 65
- Response time for breaking t2
- 65 ms
- Moment of inertia of the armature (B300 or B800)
- 20
- Moment of inertia of the armature (B300 or B800)
- 20 kg/cm²
- Nominal voltage
- 24 VDC
- Nominal voltage
- 24
- Power rating
- 35
- IP protection
- IP 00
- Connection
- Free wires (400 mm)
- Insulation class
- F
