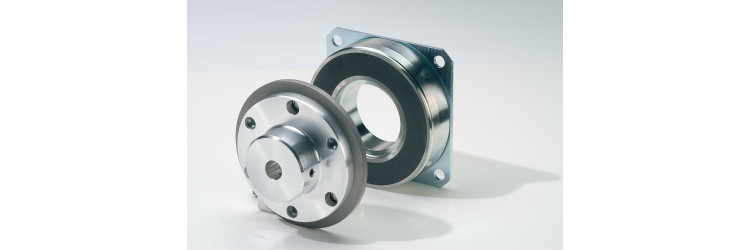

86 111 21: this brake with current emission has the following advantages: - high torque for reduced space requirement - almost zero angular clearance when stopped - zero residual torque (in all mounting positions) - accepts dynamic braking.
Brakes and clutches
- Product range
- Brake with current emission
- Fastening
- By tapped holes
- Dimension d3
- 150
- Dimension d3
- 150 mm
- Dimension d5
- 167
- Dimension d5
- 167 mm
- Weight without member
- 11 kg
- Weight without member
- 11
- Air gap S0
- 0,4
- Air gap S0
- 0,4 mm
- Dimension d2
- 120
- Dimension d2
- 120 mm
- Dynamic torque M2
- 150
- Dynamic torque M2
- 150 N⋅m
- Lifetime (indicative values) MJ
- 2700
- Lifetime (indicative values) MJ
- 2700 MJ
- Dimension d
- 210
- Dimension d
- 210 mm
- Dimension L
- 400
- Dimension L
- 400 mm
- Dimension ?
- 6*60°
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B300 or 86 XXX ... B400 (more details in the catalog for download).
- Dimension d1
- 200
- Dimension d1
- 200 mm
- Dimension M
- 6 M8*8
- Dimension M
- 6 M8*8 mm
- Dimension b1
- 30
- Dimension b1
- 30 mm
- Dimension b3
- 3
- Dimension b3
- 3 mm
- Product range
- Brake with current emission
- Maximum speed nmax
- 2500
- Maximum speed nmax
- 2500 min⁻¹
- Permissible friction work per hour P max
- 1300
- Permissible friction work per hour P max
- 1300 kJ/h
- Permissible friction work per operation W max
- 110
- Permissible friction work per operation W max
- 110 kJ
- Response time for breaking t2
- 90
- Response time for breaking t2
- 90 ms
- Moment of inertia of the armature (B300 or B800)
- 97
- Moment of inertia of the armature (B300 or B800)
- 97 kg/cm²
- Nominal voltage
- 24
- Nominal voltage
- 24 VDC
- Power rating
- 45
- IP protection
- IP 00
- Connection
- Free wires (400 mm)
- Insulation class
- F
