86 121 04 Brakes and clutches
Brake with current emission
Brake with current emission

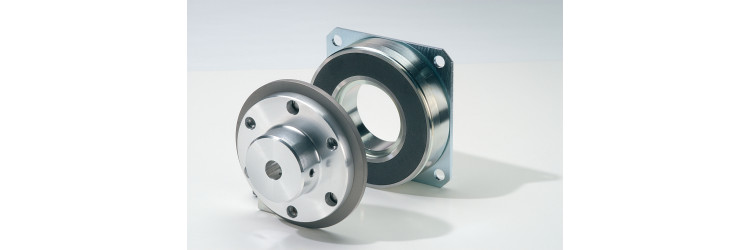

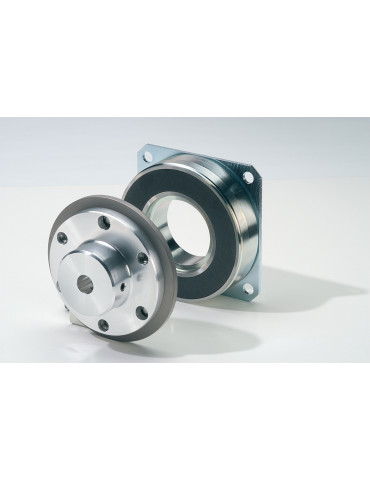

86 121 04: this brake with current emission has the following advantages: - high torque for reduced space requirement - almost zero angular clearance when stopped - zero residual torque (in all mounting positions) - accepts dynamic braking.
Brakes and clutches
- Product range
- Brake with current emission
- Fastening
- By flange
- Dimension b5
- 2
- Dimension b5
- 2 mm
- Dimension d3
- 15 mm
- Dimension d3
- 15
- Dimension d4
- 28
- Dimension d4
- 28 mm
- Dimension d7
- 54
- Dimension d7
- 54 mm
- Weight without member
- 0,15
- Weight without member
- 0,15 kg
- Air gap S0
- 16
- Air gap S0
- 16 mm
- Dimension d2
- 37
- Dimension d2
- 37 mm
- Dimension d6
- 32,5
- Dimension d6
- 32,5 mm
- Air gap S
- 0,2
- Air gap S
- 0,2 mm
- Lifetime (indicative values) MJ
- 1,6 MJ
- Lifetime (indicative values) MJ
- 1,6
- Dimension b4
- 2
- Dimension b4
- 2 mm
- Dimension d8
- 62,5
- Dimension d8
- 62,5 mm
- Moment of inertia of the armature without hub
- 0,05
- Moment of inertia of the armature without hub
- 0,05 kg/cm²
- Dimension b6
- 45
- Dimension b6
- 45 mm
- Dimension d9
- 3,5
- Dimension d9
- 3,5 mm
- Dimension b2
- 17,5
- Dimension b2
- 17,5 mm
- Dimension ?
- 4*90°
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B300 or 86 XXX ... B400 (more details in the catalog for download).
- Dimension d1
- 39,5
- Dimension d1
- 39,5 mm
- Dimension M
- 400
- Dimension M
- 400 mm
- Dimension a
- 8
- Dimension a
- 8 mm
- Dimension b1
- 19,5
- Dimension b1
- 19,5 mm
- Dimension b3
- 4
- Dimension b3
- 4 mm
- Dimension ?
- 6 M2*3
- Dimension ?
- 6*60°
- Product range
- Brake with current emission
- Maximum speed nmax
- 1
- Maximum speed nmax
- 1 min⁻¹
- Permissible friction work per hour P max
- 12000
- Permissible friction work per hour P max
- 12000 kJ/h
- Permissible friction work per operation W max
- 100
- Permissible friction work per operation W max
- 100 kJ
- Response time for breaking t2
- 15
- Response time for breaking t2
- 15 ms
- Nominal voltage
- 24
- Nominal voltage
- 24 VDC
- IP protection
- IP 00
- Connection
- Free wires (400 mm)
- Insulation class
- F
