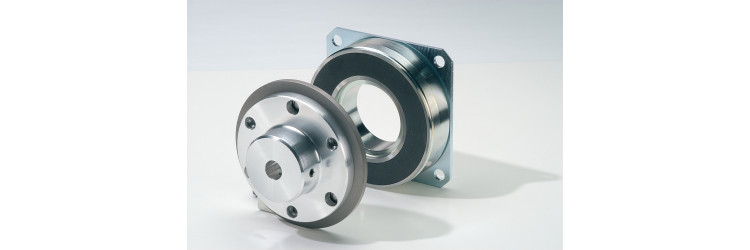

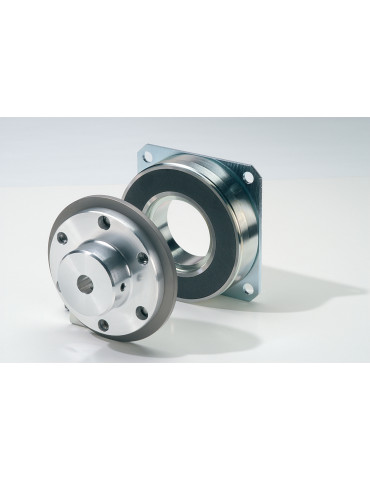

86 121 07: this brake with current emission has the following advantages: - high torque for reduced space requirement - almost zero angular clearance when stopped - zero residual torque (in all mounting positions) - accepts dynamic braking.
Brakes and clutches
- Product range
- Brake with current emission
- Fastening
- By flange
- Dimension b5
- 2,5
- Dimension b5
- 2,5 mm
- Dimension d3
- 32
- Dimension d3
- 32 mm
- Dimension d4
- 55
- Dimension d4
- 55 mm
- Dimension d7
- 79,5
- Dimension d7
- 79,5 mm
- Weight without member
- 0,65
- Weight without member
- 0,65 kg
- Air gap S0
- 25
- Air gap S0
- 25 mm
- Dimension d2
- 66,5
- Dimension d2
- 66,5 mm
- Dimension d6
- 61 mm
- Dimension d6
- 61
- Air gap S
- 0,2
- Air gap S
- 0,2 mm
- Lifetime (indicative values) MJ
- 6
- Lifetime (indicative values) MJ
- 6 MJ
- Dimension b4
- 2
- Dimension b4
- 2 mm
- Dimension d8
- 89,5
- Dimension d8
- 89,5 mm
- Moment of inertia of the armature without hub
- 0,65
- Moment of inertia of the armature without hub
- 0,65 kg/cm²
- Dimension b6
- 70
- Dimension b6
- 70 mm
- Dimension d9
- 5,5
- Dimension d9
- 5,5 mm
- Dimension b2
- 23
- Dimension b2
- 23 mm
- Dimension ?
- 4*90°
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B300 or 86 XXX ... B400 (more details in the catalog for download).
- Dimension d1
- 70
- Dimension d1
- 70 mm
- Dimension M
- 400
- Dimension M
- 400 mm
- Dimension a
- 12
- Dimension a
- 12 mm
- Dimension b1
- 25,5
- Dimension b1
- 25,5 mm
- Dimension b3
- 4,5
- Dimension b3
- 4,5 mm
- Dimension ?
- 6 M3*5
- Dimension ?
- 6*60°
- Product range
- Brake with current emission
- Maximum speed nmax
- 5
- Maximum speed nmax
- 5 min⁻¹
- Permissible friction work per hour P max
- 8000
- Permissible friction work per hour P max
- 8000 kJ/h
- Permissible friction work per operation W max
- 250
- Permissible friction work per operation W max
- 250 kJ
- Response time for breaking t2
- 25
- Response time for breaking t2
- 25 ms
- Nominal voltage
- 24 VDC
- Nominal voltage
- 24
- IP protection
- IP 00
- Connection
- Free wires (400 mm)
- Insulation class
- F
