86 121 09 Brakes and clutches
Brake with current emission
Brake with current emission

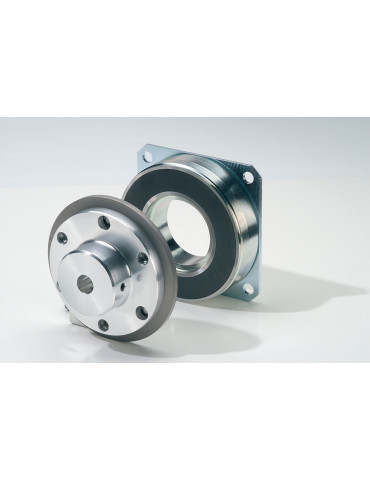

86 121 09: this brake with current emission has the following advantages: - high torque for reduced space requirement - almost zero angular clearance when stopped - zero residual torque (in all mounting positions) - accepts dynamic braking.
Brakes and clutches
- Product range
- Brake with current emission
- Fastening
- By flange
- Dimension b5
- 2,5
- Dimension b5
- 2,5 mm
- Dimension d3
- 42
- Dimension d3
- 42 mm
- Dimension d4
- 68
- Dimension d4
- 68 mm
- Dimension d7
- 102
- Dimension d7
- 102 mm
- Weight without member
- 1,15
- Weight without member
- 1,15 kg
- Air gap S0
- 38
- Air gap S0
- 38 mm
- Dimension d2
- 85,5
- Dimension d2
- 85,5 mm
- Dimension d6
- 75
- Dimension d6
- 75 mm
- Air gap S
- 0,3
- Air gap S
- 0,3 mm
- Lifetime (indicative values) MJ
- 11
- Lifetime (indicative values) MJ
- 11 MJ
- Dimension b4
- 2
- Dimension b4
- 2 mm
- Dimension d8
- 115,5
- Dimension d8
- 115,5 mm
- Moment of inertia of the armature without hub
- 2,1
- Moment of inertia of the armature without hub
- 2,1 kg/cm²
- Dimension b6
- 90
- Dimension b6
- 90 mm
- Dimension d9
- 6,5
- Dimension d9
- 6,5 mm
- Dimension b2
- 24,5
- Dimension b2
- 24,5 mm
- Dimension ?
- 4*90°
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B300 or 86 XXX ... B400 (more details in the catalog for download).
- Dimension d1
- 90
- Dimension d1
- 90 mm
- Dimension M
- 400
- Dimension M
- 400 mm
- Dimension a
- 17
- Dimension a
- 17 mm
- Dimension b1
- 27
- Dimension b1
- 27 mm
- Dimension b3
- 4,5
- Dimension b3
- 4,5 mm
- Dimension ?
- 6 M3*5
- Dimension ?
- 6*60°
- Product range
- Brake with current emission
- Maximum speed nmax
- 11
- Maximum speed nmax
- 11 min⁻¹
- Permissible friction work per hour P max
- 6000
- Permissible friction work per hour P max
- 6000 kJ/h
- Permissible friction work per operation W max
- 350
- Permissible friction work per operation W max
- 350 kJ
- Response time for breaking t2
- 45
- Response time for breaking t2
- 45 ms
- Nominal voltage
- 24
- Nominal voltage
- 24 VDC
- IP protection
- IP 00
- Connection
- Free wires (400 mm)
- Insulation class
- F
