86 121 14 Brakes and clutches

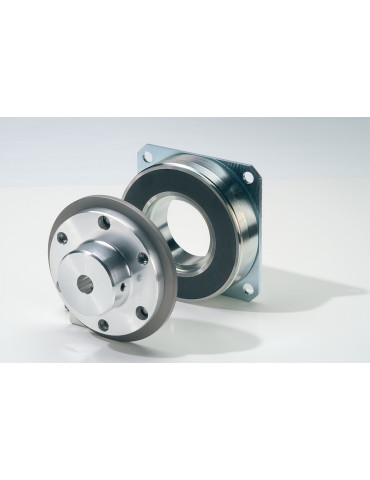

Brake with current emission

Brake with current emission

86 121 14: this brake with current emission has the following advantages: - high torque for reduced space requirement - almost zero angular clearance when stopped - zero residual torque (in all mounting positions) - accepts dynamic braking.
Brakes and clutches
Grayed out functions require you to be logged in to your account
login to my account
Product range
Brake with current emission
Fastening
By flange
Dimension b5
4
Dimension b5
4 mm
Dimension d3
72
Dimension d3
72 mm
Dimension d4
110
Dimension d4
110 mm
Dimension d7
155
Dimension d7
155 mm
Weight without member
4
Weight without member
4 kg
Air gap S0
65
Air gap S0
65 mm
Dimension d2
134
Dimension d2
134 mm
Dimension d6
120
Dimension d6
120 mm
Air gap S
0,3
Air gap S
0,3 mm
Lifetime (indicative values) MJ
53
Lifetime (indicative values) MJ
53 MJ
Dimension b4
2,5
Dimension b4
2,5 mm
Dimension d8
170,5
Dimension d8
170,5 mm
Moment of inertia of the armature without hub
20
Moment of inertia of the armature without hub
20 kg/cm²
Dimension b6
140
Dimension b6
140 mm
Dimension d9
9
Dimension d9
9 mm
Dimension b2
33,5
Dimension b2
33,5 mm
Dimension ?
4*90°
Other characteristics
To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B300 or 86 XXX ... B400 (more details in the catalog for download).
Dimension d1
140
Dimension d1
140 mm
Dimension M
400
Dimension M
400 mm
Dimension a
35
Dimension a
35 mm
Dimension b1
37,5
Dimension b1
37,5 mm
Dimension b3
6,5
Dimension b3
6,5 mm
Dimension ?
6 M5*8
Dimension ?
6*60°
Product range
Brake with current emission
Maximum speed nmax
60
Maximum speed nmax
60 min⁻¹
Permissible friction work per hour P max
3600
Permissible friction work per hour P max
3600 kJ/h
Permissible friction work per operation W max
700
Permissible friction work per operation W max
700 kJ
Response time for breaking t2
110
Response time for breaking t2
110 ms
Nominal voltage
24
Nominal voltage
24 VDC
IP protection
IP 00
Connection
Free wires (400 mm)
Insulation class
F
