Brake with current emission
Brake with current emission

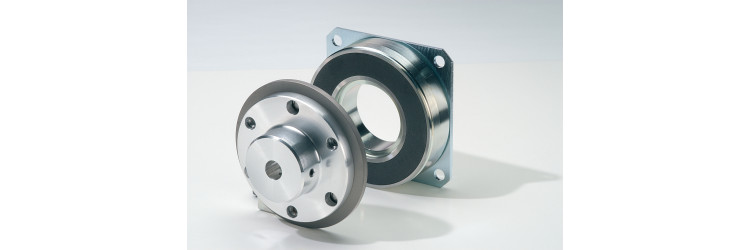

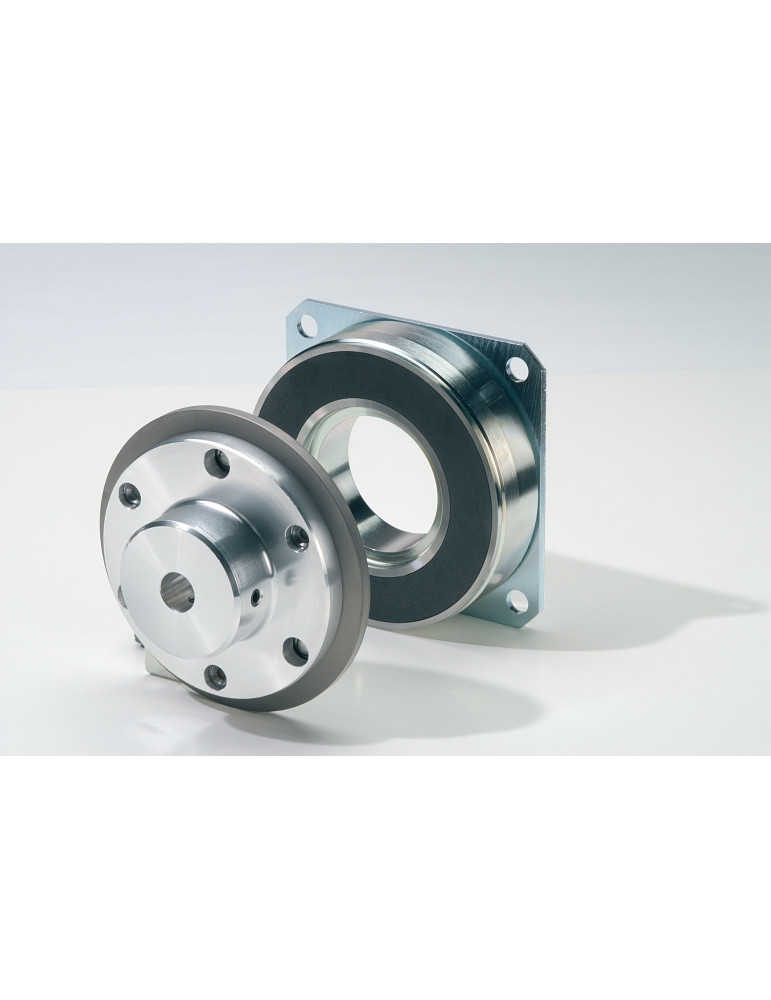

86 121 17: this brake with current emission has the following advantages: - high torque for reduced space requirement - almost zero angular clearance when stopped - zero residual torque (in all mounting positions) - accepts dynamic braking.
Brakes and clutches
- Product range
- Brake with current emission
- Fastening
- By flange
- Dimension d3
- 98
- Dimension d3
- 98 mm
- Dimension d4
- 125
- Dimension d4
- 125 mm
- Weight without member
- 7,4
- Weight without member
- 7,4 kg
- Air gap S0
- 70
- Air gap S0
- 70 mm
- Dimension d2
- 167
- Dimension d2
- 167 mm
- Dimension d6
- 140
- Dimension d6
- 140 mm
- Air gap S
- 0,3
- Air gap S
- 0,3 mm
- Lifetime (indicative values) MJ
- 80
- Lifetime (indicative values) MJ
- 80 MJ
- Dimension b4
- 2,5
- Dimension b4
- 2,5 mm
- Moment of inertia of the armature without hub
- 48
- Moment of inertia of the armature without hub
- 48 kg/cm²
- Dimension b2
- 29
- Dimension b2
- 29 mm
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B300 or 86 XXX ... B400 (more details in the catalog for download).
- Dimension d1
- 175
- Dimension d1
- 175 mm
- Dimension M
- 400
- Dimension M
- 400 mm
- Dimension a
- 40
- Dimension a
- 40 mm
- Dimension ?
- 6 M6*8
- Dimension ?
- 6*60°
- Product range
- Brake with current emission
- Maximum speed nmax
- 80
- Maximum speed nmax
- 80 min⁻¹
- Permissible friction work per hour P max
- 3000
- Permissible friction work per hour P max
- 3000 kJ/h
- Permissible friction work per operation W max
- 1000
- Permissible friction work per operation W max
- 1000 kJ
- Response time for breaking t2
- 110
- Response time for breaking t2
- 110 ms
- Nominal voltage
- 24
- Nominal voltage
- 24 VDC
- IP protection
- IP 00
- Connection
- Free wires (400 mm)
- Insulation class
- F
