86 121 21 Brakes and clutches
Brake with current emission
Brake with current emission

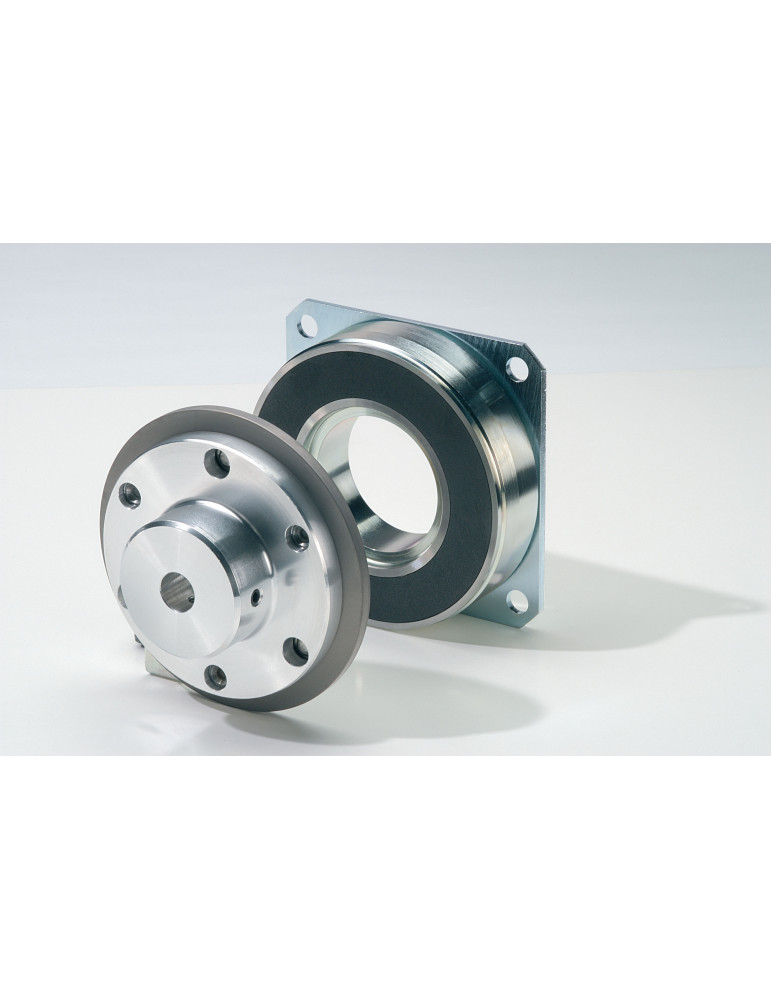

These brakes offer the following advantages: - high torque for reduced space requirement - almost zero angular clearance when stopped - zero residual torque (in all mounting positions) - accepts dynamic braking.
Brakes and clutches
- Dimension d3
- 120 mm
- Dimension d4
- 150 mm
- Weight without member
- 11 kg
- Air gap S0
- 90 mm
- Dimension d2
- 200 mm
- Dimension d6
- 167 mm
- Air gap S
- 0,4 mm
- Lifetime (indicative values) MJ
- 110 MJ
- Dimension b4
- 3 mm
- Moment of inertia of the armature without hub
- 97 kg/cm²
- Dimension b2
- 30 mm
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B300 or 86 XXX ... B400 (more details in the catalog for download).
- Dimension d1
- 210 mm
- Dimension M
- 400 mm
- Dimension a
- 45 mm
- Dimension ?
- 6 M8*8
- Dimension ?
- 6*60°
- Maximum speed nmax
- 150 min⁻¹
- Permissible friction work per hour P max
- 2500 kJ/h
- Permissible friction work per operation W max
- 1300 kJ
- Response time for breaking t2
- 150 ms
- Product range
- Brake with current emission
- Product range
- Brake with current emission
- Fastening
- By flange
- Nominal voltage
- 24 VDC
- IP protection
- IP 00
- Connection
- Free wires (400 mm)
- Insulation class
- F
