86 021 09E Brakes and clutches
Clutch by energizing
Clutch by energizing

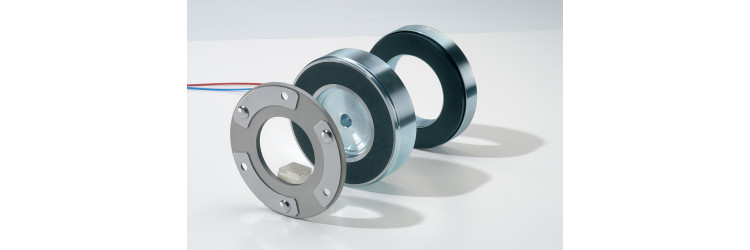

86 021 09E: this clutch by energizing has the following characteristics: -clutching by energizing -coupling without current -angular clearance almost zero when stopped -couple residual uncoupled zero (in all mounting positions) -allows the clutch with relative speed through a mixed friction lining.
Brakes and clutches
- Product range
- Clutch by energizing
- Fastening
- By flange
- Dimension d3
- 68
- Dimension d3
- 68 mm
- Weight without member
- 1,15
- Weight without member
- 1,15 kg
- Air gap S0
- 0,3
- Air gap S0
- 0,3 mm
- Dimension d2
- 10*40
- Dimension d2
- 10*40 mm
- Dynamic torque M2
- 11
- Dynamic torque M2
- 11 N⋅m
- Lifetime (indicative values) MJ
- 450
- Lifetime (indicative values) MJ
- 450 MJ
- Dimension b4
- 17
- Dimension b4
- 17 mm
- Moment of inertia of the armature without hub
- 2,1
- Moment of inertia of the armature without hub
- 2,1 kg/cm²
- Dimension b6
- 2,5
- Dimension b6
- 2,5 mm
- Dimension d9
- 75
- Dimension d9
- 75 mm
- Moment of inertia of the rotating polar armature
- 7
- Moment of inertia of the rotating polar armature
- 7 kg/cm²
- Dimension b7
- 90
- Dimension b7
- 90 mm
- Dimension d10
- 102
- Dimension d10
- 102 mm
- Dimension d11
- 6,5
- Dimension d11
- 6,5 mm
- Dimension d12
- 115,5
- Dimension d12
- 115,5 mm
- Dimension b
- 24,5
- Dimension b
- 24,5 mm
- Dimension b2
- 2
- Dimension b2
- 2 mm
- Dimension d
- 90
- Dimension d
- 90 mm
- Dimension L
- 400
- Dimension L
- 400 mm
- Dimension ?
- 4*90°
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B200 or 86 XXX ... B300 (more details in the catalog for download).
- Dimension d1
- 85,5
- Dimension d1
- 85,5 mm
- Dimension M
- 6*M3*5
- Dimension M
- 6*M3*5 mm
- Dimension b3
- 4,5
- Dimension b3
- 4,5 mm
- Dimension ?
- 6*60°
- Dimension ?
- 30°
- Product range
- Clutch by energizing
- Maximum speed nmax
- 6000
- Maximum speed nmax
- 6000 min⁻¹
- Permissible friction work per hour P max
- 350
- Permissible friction work per hour P max
- 350 kJ/h
- Permissible friction work per operation W max
- 11
- Permissible friction work per operation W max
- 11 kJ
- Response time for breaking t2
- 38
- Response time for breaking t2
- 38 ms
- Nominal voltage
- 24
- Nominal voltage
- 24 VDC
- Power rating
- 17
- IP protection
- IP 00
- Connection
- Free wires
- Insulation class
- F
