86 021 07E Brakes and clutches
Clutch by energizing
Clutch by energizing

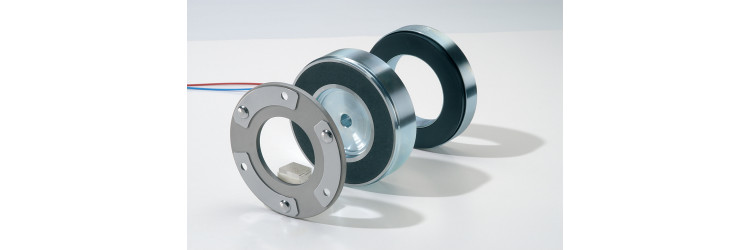

86 021 07E: this clutch by energizing has the following characteristics: -clutching by energizing -coupling without current -angular clearance almost zero when stopped -couple residual uncoupled zero (in all mounting positions) -allows the clutch with relative speed through a mixed friction lining.
Brakes and clutches
- Product range
- Clutch by energizing
- Fastening
- By flange
- Dimension d3
- 55
- Dimension d3
- 55 mm
- Weight without member
- 0,65
- Weight without member
- 0,65 kg
- Air gap S0
- 0,2 mm
- Air gap S0
- 0,2
- Dimension d2
- 10*30
- Dimension d2
- 10*30 mm
- Dynamic torque M2
- 5
- Dynamic torque M2
- 5 N⋅m
- Lifetime (indicative values) MJ
- 260
- Lifetime (indicative values) MJ
- 260 MJ
- Dimension b4
- 15
- Dimension b4
- 15 mm
- Moment of inertia of the armature without hub
- 0,65
- Moment of inertia of the armature without hub
- 0,65 kg/cm²
- Dimension b6
- 2,5
- Dimension b6
- 2,5 mm
- Dimension d9
- 61
- Dimension d9
- 61 mm
- Moment of inertia of the rotating polar armature
- 2,45 kg/cm²
- Moment of inertia of the rotating polar armature
- 2,45
- Dimension b7
- 70
- Dimension b7
- 70 mm
- Dimension d10
- 79,5
- Dimension d10
- 79,5 mm
- Dimension d11
- 5,5
- Dimension d11
- 5,5 mm
- Dimension d12
- 89,5
- Dimension d12
- 89,5 mm
- Dimension b
- 23
- Dimension b
- 23 mm
- Dimension b2
- 2
- Dimension b2
- 2 mm
- Dimension d
- 70 mm
- Dimension d
- 70
- Dimension L
- 400
- Dimension L
- 400 mm
- Dimension ?
- 4*90°
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B200 or 86 XXX ... B300 (more details in the catalog for download).
- Dimension d1
- 66,5
- Dimension d1
- 66,5 mm
- Dimension M
- 6*M3*5
- Dimension M
- 6*M3*5 mm
- Dimension b3
- 4,5
- Dimension b3
- 4,5 mm
- Dimension ?
- 6*60°
- Dimension ?
- 30°
- Product range
- Clutch by energizing
- Maximum speed nmax
- 8000
- Maximum speed nmax
- 8000 min⁻¹
- Permissible friction work per hour P max
- 250
- Permissible friction work per hour P max
- 250 kJ/h
- Permissible friction work per operation W max
- 6
- Permissible friction work per operation W max
- 6 kJ
- Response time for breaking t2
- 25
- Response time for breaking t2
- 25 ms
- Nominal voltage
- 24
- Nominal voltage
- 24 VDC
- Power rating
- 12
- IP protection
- IP 00
- Connection
- Free wires
- Insulation class
- F
