86 051 03E Brakes and clutches
Clutch by energizing
Clutch by energizing

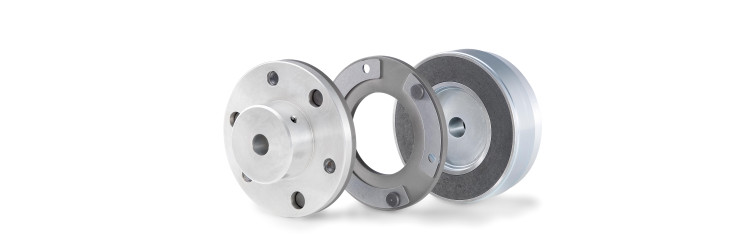

86 051 03E: this clutch by energizing has the following characteristics: -clutching by energizing -coupling without current -angular clearance almost zero when stopped -couple residual uncoupled zero (in all mounting positions) -allows the clutch with relative speed through a mixed friction lining.
Brakes and clutches
- Product range
- Clutch by energizing
- Fastening
- Mounted on a movable armature
- Dimension d3
- 4,2
- Dimension d3
- 4,2 mm
- Weight without member
- 0,06
- Weight without member
- 0,06 kg
- Air gap S0
- 0,2
- Air gap S0
- 0,2 mm
- Dimension d2
- 5
- Dimension d2
- 5 mm
- Dynamic torque M2
- 0,2
- Dynamic torque M2
- 0,2 N⋅m
- Lifetime (indicative values) MJ
- 28
- Lifetime (indicative values) MJ
- 28 MJ
- Moment of inertia of the armature without hub
- 0,01
- Moment of inertia of the armature without hub
- 0,01 kg/cm²
- Moment of inertia of the rotating polar armature
- 0,06
- Moment of inertia of the rotating polar armature
- 0,06 kg/cm²
- Dimension b
- 20
- Dimension b
- 20 mm
- Dimension b2
- 1,5
- Dimension b2
- 1,5 mm
- Dimension d
- 28
- Dimension d
- 28 mm
- Dimension L
- 400
- Dimension L
- 400 mm
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B200 or 86 XXX ... B300 (more details in the catalog for download).
- Dimension d1
- 26
- Dimension d1
- 26 mm
- Dimension h
- 19,2
- Dimension h
- 19,2 mm
- Product range
- Clutch by energizing
- Maximum speed nmax
- 16000
- Maximum speed nmax
- 16000 min⁻¹
- Permissible friction work per hour P max
- 65
- Permissible friction work per hour P max
- 65 kJ/h
- Permissible friction work per operation W max
- 0,9
- Permissible friction work per operation W max
- 0,9 kJ
- Response time for breaking t2
- 12
- Response time for breaking t2
- 12 ms
- Nominal voltage
- 24
- Nominal voltage
- 24 VDC
- Power rating
- 6
- IP protection
- IP 00
- Connection
- Free wires
- Insulation class
- F
