86 051 04E Brakes and clutches
Clutch by energizing
Clutch by energizing

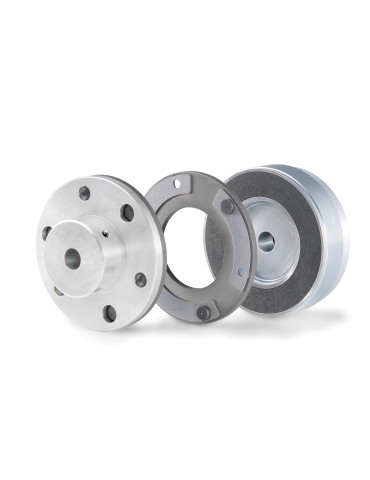

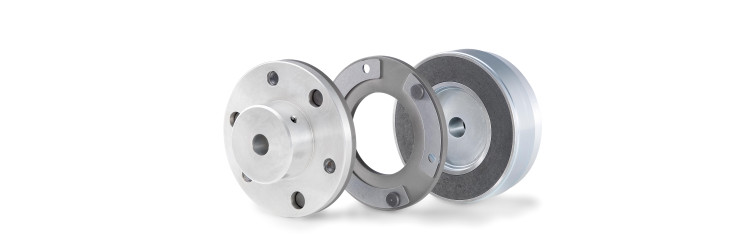

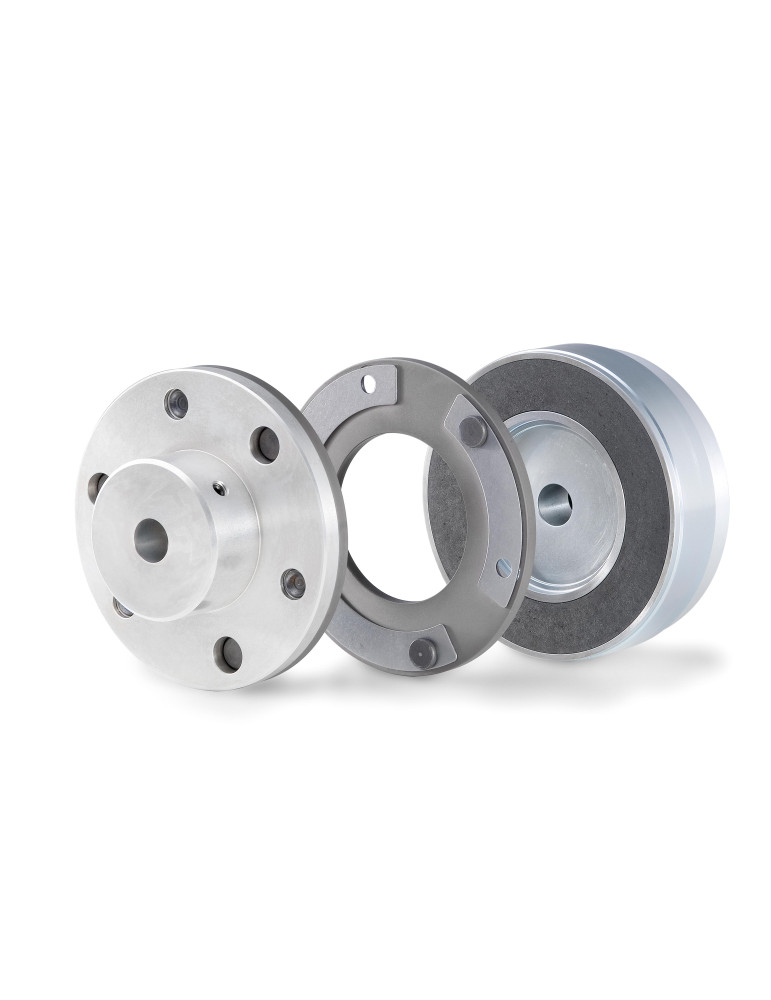

86 051 04E: this clutch by energizing has the following characteristics: -clutching by energizing -coupling without current -angular clearance almost zero when stopped -couple residual uncoupled zero (in all mounting positions) -allows the clutch with relative speed through a mixed friction lining.
Brakes and clutches
- Product range
- Clutch by energizing
- Fastening
- Mounted on a movable armature
- Dimension d3
- 4,2
- Dimension d3
- 4,2 mm
- Weight without member
- 0,15
- Weight without member
- 0,15 kg
- Air gap S0
- 0,2
- Air gap S0
- 0,2 mm
- Dimension d2
- 5*8
- Dimension d2
- 5*8 mm
- Dynamic torque M2
- 1
- Dynamic torque M2
- 1 N⋅m
- Lifetime (indicative values) MJ
- 65
- Lifetime (indicative values) MJ
- 65 MJ
- Moment of inertia of the armature without hub
- 0,05
- Moment of inertia of the armature without hub
- 0,05 kg/cm²
- Moment of inertia of the rotating polar armature
- 0,17 kg/cm²
- Moment of inertia of the rotating polar armature
- 0,17
- Dimension b
- 24,5
- Dimension b
- 24,5 mm
- Dimension b2
- 1,5
- Dimension b2
- 1,5 mm
- Dimension d
- 39,5
- Dimension d
- 39,5 mm
- Dimension L
- 400
- Dimension L
- 400 mm
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B200 or 86 XXX ... B300 (more details in the catalog for download).
- Dimension d1
- 37
- Dimension d1
- 37 mm
- Dimension h
- 24,8
- Dimension h
- 24,8 mm
- Product range
- Clutch by energizing
- Maximum speed nmax
- 12000
- Maximum speed nmax
- 12000 min⁻¹
- Permissible friction work per hour P max
- 100
- Permissible friction work per hour P max
- 100 kJ/h
- Permissible friction work per operation W max
- 1,6
- Permissible friction work per operation W max
- 1,6 kJ
- Response time for breaking t2
- 16
- Response time for breaking t2
- 16 ms
- Nominal voltage
- 24
- Nominal voltage
- 24 VDC
- Power rating
- 8
- IP protection
- IP 00
- Connection
- Free wires
- Insulation class
- F
