86 053 17E Brakes and clutches
Clutch by energizing
Clutch by energizing

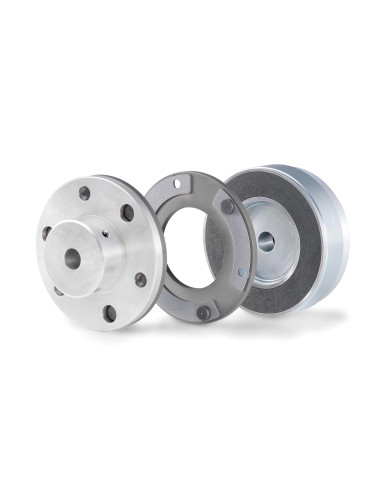

86 053 17E: this clutch by energizing has the following characteristics: -clutching by energizing -coupling without current -angular clearance almost zero when stopped -couple residual uncoupled zero (in all mounting positions) -allows the clutch with relative speed through a mixed friction lining.
Brakes and clutches
- Product range
- Clutch by energizing
- Fastening
- Mounted on a movable armature
- Dimension d3
- 5
- Dimension d3
- 5 mm
- Weight without member
- 7,4
- Weight without member
- 7,4 kg
- Air gap S0
- 0,3
- Air gap S0
- 0,3 mm
- Dimension d2
- 20*65
- Dimension d2
- 20*65 mm
- Dynamic torque M2
- 80 N⋅m
- Dynamic torque M2
- 80
- Lifetime (indicative values) MJ
- 1500
- Lifetime (indicative values) MJ
- 1500 MJ
- Moment of inertia of the armature without hub
- 48
- Moment of inertia of the armature without hub
- 48 kg/cm²
- Moment of inertia of the rotating polar armature
- 85
- Moment of inertia of the rotating polar armature
- 85 kg/cm²
- Dimension b
- 57
- Dimension b
- 57 mm
- Dimension b2
- 1
- Dimension b2
- 1 mm
- Dimension d
- 175
- Dimension d
- 175 mm
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B200 or 86 XXX ... B300 (more details in the catalog for download).
- Dimension d1
- 167
- Dimension d1
- 167 mm
- Dimension h
- 124,5
- Dimension h
- 124,5 mm
- Product range
- Clutch by energizing
- Maximum speed nmax
- 3000
- Maximum speed nmax
- 3000 min⁻¹
- Permissible friction work per hour P max
- 1000
- Permissible friction work per hour P max
- 1000 kJ/h
- Permissible friction work per operation W max
- 80
- Permissible friction work per operation W max
- 80 kJ
- Response time for breaking t2
- 70
- Response time for breaking t2
- 70 ms
- Nominal voltage
- 24
- Nominal voltage
- 24 VDC
- Power rating
- 40
- IP protection
- IP 00
- Connection
- Free wires
- Insulation class
- F
