86 053 21E Brakes and clutches
Clutch by energizing
Clutch by energizing

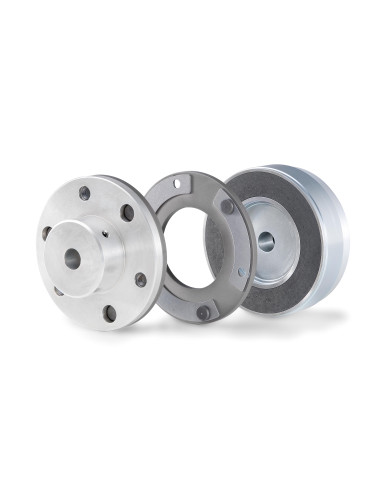

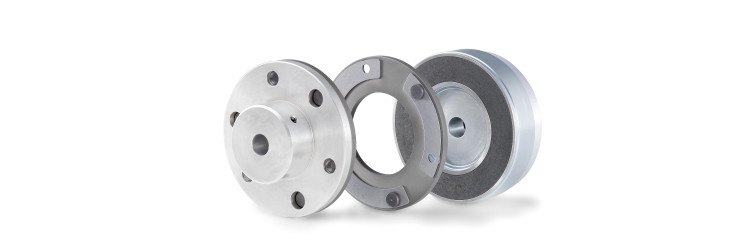

86 053 21E: this clutch by energizing has the following characteristics: -clutching by energizing -coupling without current -angular clearance almost zero when stopped -couple residual uncoupled zero (in all mounting positions) -allows the clutch with relative speed through a mixed friction lining.
Brakes and clutches
- Product range
- Clutch by energizing
- Fastening
- Mounted on a movable armature
- Dimension d3
- 5
- Dimension d3
- 5 mm
- Weight without member
- 11
- Weight without member
- 11 kg
- Air gap S0
- 0,4
- Air gap S0
- 0,4 mm
- Dimension d2
- 25*80
- Dimension d2
- 25*80 mm
- Dynamic torque M2
- 150
- Dynamic torque M2
- 150 N⋅m
- Lifetime (indicative values) MJ
- 2700
- Lifetime (indicative values) MJ
- 2700 MJ
- Moment of inertia of the armature without hub
- 97
- Moment of inertia of the armature without hub
- 97 kg/cm²
- Moment of inertia of the rotating polar armature
- 217
- Moment of inertia of the rotating polar armature
- 217 kg/cm²
- Dimension b
- 60,5
- Dimension b
- 60,5 mm
- Dimension b2
- 1
- Dimension b2
- 1 mm
- Dimension d
- 210
- Dimension d
- 210 mm
- Other characteristics
- To ensure its function, the device must be mounted with a mobile armature 86 XXX ... B200 or 86 XXX ... B300 (more details in the catalog for download).
- Dimension d1
- 200 mm
- Dimension d1
- 200
- Dimension h
- 149,5
- Dimension h
- 149,5 mm
- Product range
- Clutch by energizing
- Maximum speed nmax
- 2500
- Maximum speed nmax
- 2500 min⁻¹
- Permissible friction work per hour P max
- 1300
- Permissible friction work per hour P max
- 1300 kJ/h
- Permissible friction work per operation W max
- 110 kJ
- Permissible friction work per operation W max
- 110
- Response time for breaking t2
- 90
- Response time for breaking t2
- 90 ms
- Nominal voltage
- 24
- Nominal voltage
- 24 VDC
- Power rating
- 45
- IP protection
- IP 00
- Connection
- Free wires
- Insulation class
- F
