FR-20-40-DL-500-5 Conveyors

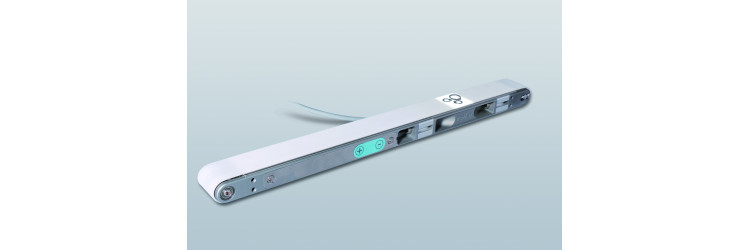

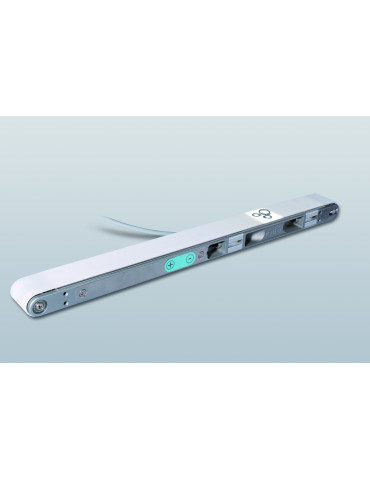

Conveyor with internal drive and optical window
Conveyor with internal drive and optical window
The integrated mini-conveyor with optical window is very compact and is particularly suitable for transfers of light and small products. It has an optical window for better control of parts and is equipped with a DC motor with servo. It is designed on the basis of a profile offering multiple mounting possibilities making the implementation particularly simple and practical.
Conveyors
- Standard center distance
- 500 mm
- Standard center distance
- 500
- Conveyor belt width
- 32
- Conveyor belt width
- 32 mm
- Height
- 20
- Height
- 20 mm
- Width
- 40
- Width
- 40 mm
- Maximum load
- 5
- Maximum load
- 5 N
- Min. linear speed, analog signal 1V DC
- 2
- Min. linear speed, analog signal 1V DC
- 2 m/min
- Max. linear speed, analog signal 10V DC
- 8
- Max. linear speed, analog signal 10V DC
- 8 m/min
- Belt designation
- Translucent flat band FDA
- Product range
- Conveyor with internal drive and optical window
- Type of belt
- Flat band
- Other characteristics
- 24VDC / 0.01A white color diode
- Options
- Specific conveyor belt on request. External encoder VSW-11 or VR-24-S-SW-11. Specific spacing on request.
- Connection
- Wire 2,5 m (10 x 0,14 mm²)
- Standard voltage
- 24
- Standard voltage
- 24 VDC
