BINDER ACCESS 75 T5 CLA M Linear belts
BRECOclassic® belt
BRECOclassic® belt
Linear belts
- Range
- BINDERaccess
- Linear belt product range
- BRECOclassic® Belt
- Application
- Simple application

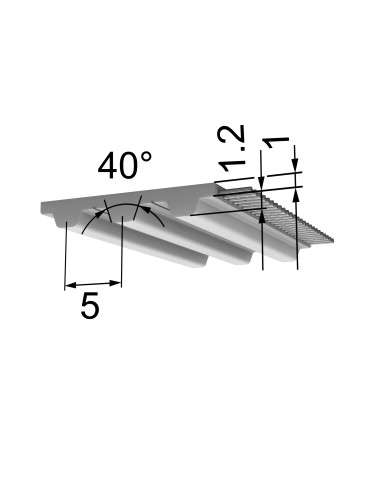

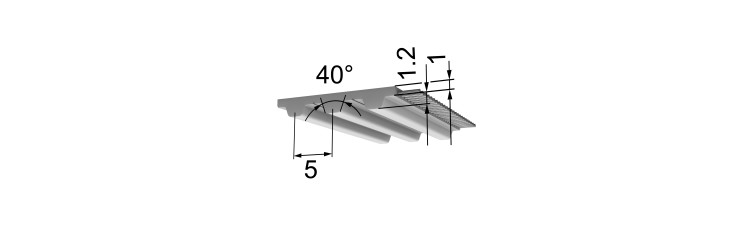

- Profile / Pitch
- T5
- Profile
- T
- PU Material steel tension member
- White TPU CLA
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member PU belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 0,16 kg/m
- Width tolerance
- +/- 0.5 mm
- Pitch
- 5 mm
- Belt width
- 75 mm
- Length tolerance
- +/-0.8 mm
- Thickness tolerance of the tooth
- 0,1/-0,3 mm
- Tolerance of thickness of the tooth
- 0/-0.1 mm
- Z min single bending standard cable
- 10
- Ø min Flexion simple câble standard
- 30 mm
- Z min alternating bending standard cord
- 15
- Ø min alternée simple câble standard
- 30 mm
- Constant stiffness of the CSPE reinforcement (steel)
- 63*10^4 N
- Constant stiffness of the CSPE reinforcement (stainless steel)
- 63*10^4 N
- Steel tension member permissible force FN
- 2520 N
- Stainless steel member permissible force FN
- 1915 N
- V max
- 80 m/s
- Product range
- BRECOclassic® belt
- Options
- PAZ
- Additional information
- Storage: 50 or 100 m rolls and longer lengths on request
