BINDER custom 9 HTD 5M CXP Power belts
CONTI® synchroforce belt
CONTI® synchroforce belt
BINDER custom 9 HTD 5M CXP: this belt is suitable for basic power transfers with high loads. It is thus produced from a vulcanized sleeve in one piece.
Power belts
- Range
- BINDERcustom
- Product range power belts
- CONTI® synchroforce belt
- Applications
- Precision application
- Minimum length
- 200 - 2000 mm
- Standard belt lengths
- 800, 1000, 1200, 2000, 200, 225, 265, 275, 285, 295, 300, 330, 350, 375, 385, 400, 405, 425, 450, 460, 475, 500, 525, 535, 550, 565, 600, 615, 620, 630, 635, 665, 700, 710, 740, 755, 835, 840, 860, 890, 900, 925, 950, 1050, 1125, 1270, 1420, 1500, 1595, 1
- Belt width
- 9 mm
- Weight
- 0,03 kg/m
- Number of teeth
- 80, 90, 100, 120, 140, 160, 180, 200, 300, 400, 85, 190, 40, 45, 53, 55, 57, 59, 60, 66, 70, 75, 77, 81, 92, 95, 105, 107, 110, 113, 123, 124, 126, 127, 133, 142, 148, 151, 167, 168, 172, 178, 185, 210, 225, 240, 254, 284, 319, 338

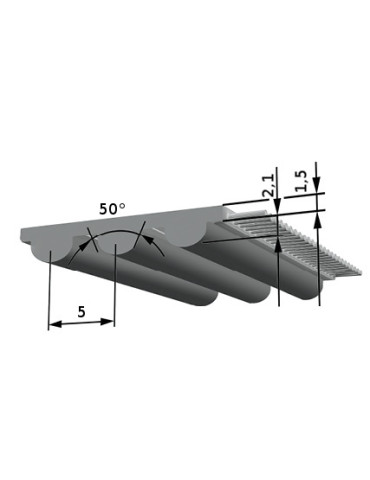

- Profile / Pitch
- HTD 5
- Profile
- HTD
- Pitch
- 5
- PU Material steel tension member
- PCP
- Temperature range of steel tension member belt
- -20 à 100 °C
- Product range
- CONTI® synchroforce belt
- Additional information
- Polyamide canvas
- Fiberglass frame permissible force FN
- 290 N
