BINDER custom 12 HTD 5M CXP Power belts

CONTI® synchroforce belt

Accueil  |  Belts,Pulleys, Accessories  |  Belts  |  Power belts  |
BINDER custom 12 HTD 5M CXP

CONTI® synchroforce belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Range
BINDERcustom
Product range power belts
CONTI® synchroforce belt
Applications
Precision application

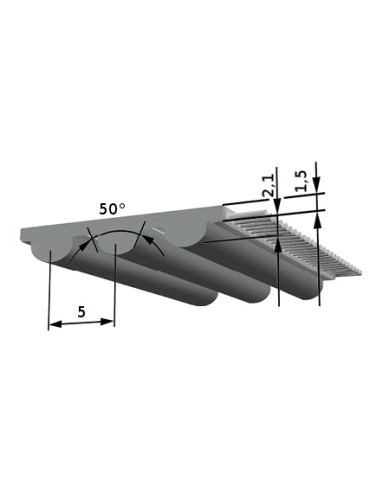

Profile / Pitch
HTD 5
Profile
HTD
Pitch
5
PU Material steel tension member
PCP
Temperature range of steel tension member belt
-20 à 100 °C
Minimum length
200 - 2000 mm
Standard belt lengths
800, 1000, 1200, 2000, 200, 225, 265, 275, 285, 295, 300, 330, 350, 375, 385, 400, 405, 425, 450, 460, 475, 500, 525, 535, 550, 565, 600, 615, 620, 630, 635, 665, 700, 710, 740, 755, 835, 840, 860, 890, 900, 925, 950, 1050, 1125, 1270, 1420, 1500, 1595, 1
Belt width
12 mm
Weight
0,04 kg/m
Number of teeth
80, 90, 100, 120, 140, 160, 180, 200, 300, 400, 85, 190, 40, 45, 53, 55, 57, 59, 60, 66, 70, 75, 77, 81, 92, 95, 105, 107, 110, 113, 123, 124, 126, 127, 133, 142, 148, 151, 167, 168, 172, 178, 185, 210, 225, 240, 254, 284, 319, 338
Fiberglass frame permissible force FN
395 N
Product range
CONTI® synchroforce belt
Additional information
Polyamide canvas
