BINDER premium 37 CTD C14M CARBON
BINDER premium 37 CTD C14M CARBON
BINDER premium 37 CTD C14M CARBON

BINDER premium 37 CTD C14M CARBON


CONTI® synchrochain carbon belt

BINDER premium 37 CTD C14M CARBON: this belt is reserved for very high load transfers. The belt is produced from a one-piece molded sleeve.
Power belts
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Range
BINDERpremium
Product range power belts
CONTI® synchrochain carbon belt
Applications
High power application

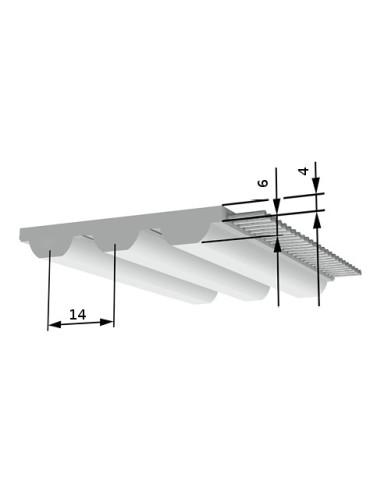

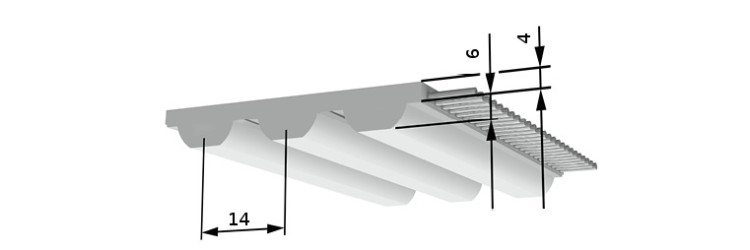

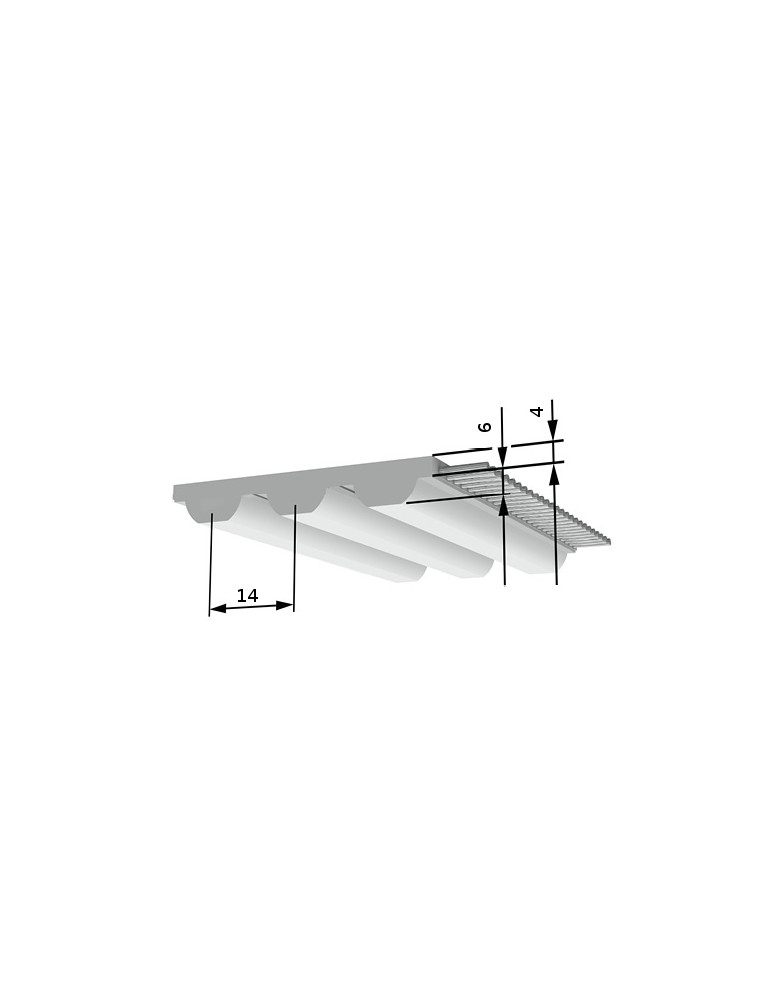

Profile / Pitch
CTD C14
Profile
CTD
Pitch
14
PU Material steel tension member
DNSU 9590
Shore hardness steel tension member belt
95 ShA
Temperature range of steel tension member belt
-55 à 100 °C
Minimum length
995 - 4410 mm
Standard belt lengths
1120, 2520, 994, 1190, 1260, 1344, 1400, 1568, 1610, 1750, 1890, 1960, 2100, 2240, 2310, 2380, 2450, 2520, 2590, 2660, 2730, 2800, 3136, 3304, 3360, 3500, 3850, 3920, 4410, 3163, 5502 mm
Belt width
37 mm
Weight
0,289 kg/m
Number of teeth
71, 80, 85, 90, 96, 100, 112, 115, 125, 135, 140, 150, 160, 165, 170, 175, 180, 185, 190, 195, 200, 224, 236, 240, 250, 275, 280, 315, 393
Steel tension member permissible force FN
11100 N
Product range
CONTI® synchrochain carbon belt
Z min single bending standard cable
28
Ø min Flexion simple câble standard
375 mm
