BINDER premium 68 CTD C14M CARBON

BINDER premium 68 CTD C14M CARBON

BINDER premium 37 CTD C14M CARBON

BINDER premium 90 CTD C14M CARBON

CONTI® synchrochain carbon belt

BINDER premium 68 CTD C14M CARBON: this belt is reserved for very high load transfers. The belt is produced from a one-piece molded sleeve.

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Product range Technical characteristics Mass and dimensions Mechanical data Other Kinematic data

Range: BINDERpremium

Product range power belts: CONTI® synchrochain carbon belt

Applications: High power application

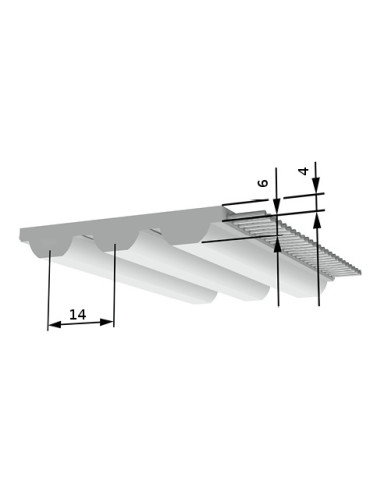

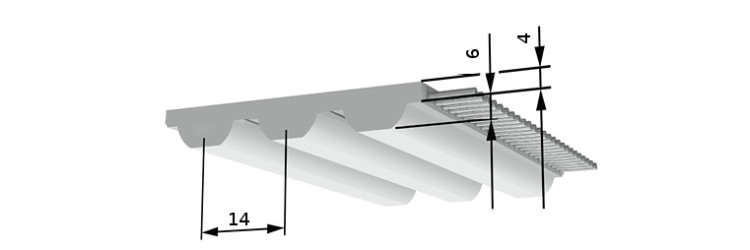

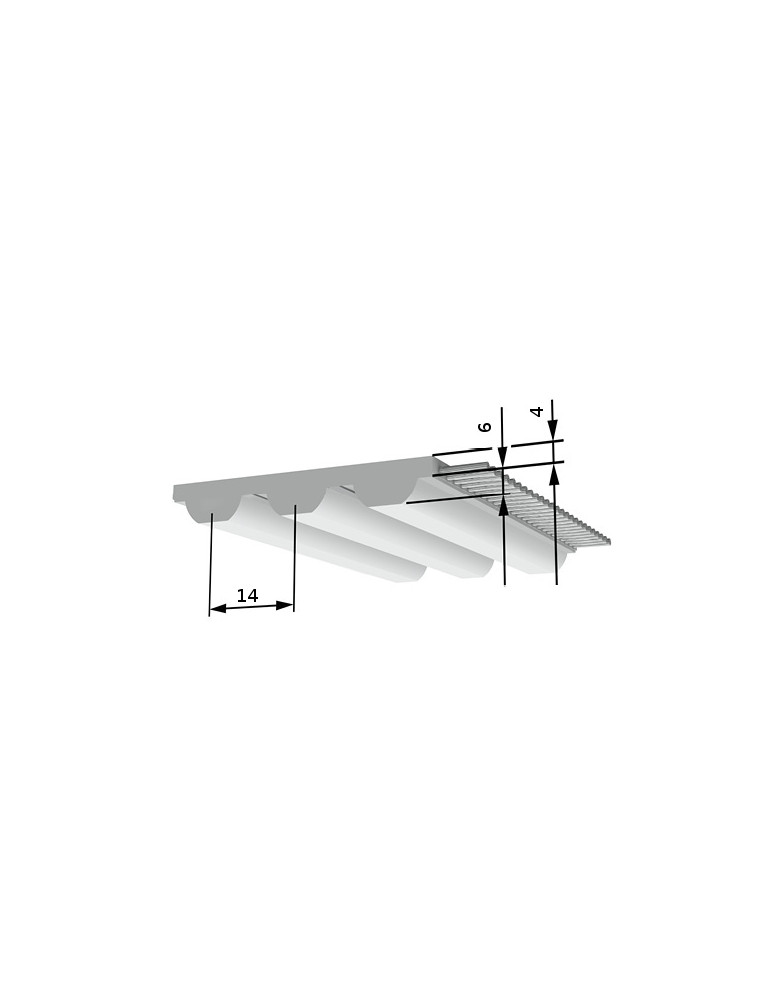

Profile / Pitch: CTD C14

Profile: CTD

Pitch: 14

PU Material steel tension member: DNSU 9590

Shore hardness steel tension member belt: 95 ShA

Temperature range of steel tension member belt: -55 à 100 °C

Minimum length: 996 - 4410 mm

Standard belt lengths: 1120, 2520, 994, 1190, 1260, 1344, 1400, 1568, 1610, 1750, 1890, 1960, 2100, 2240, 2310, 2380, 2450, 2520, 2590, 2660, 2730, 2800, 3136, 3304, 3360, 3500, 3850, 3920, 4410, 3163, 5502 mm

Belt width: 68 mm

Weight: 0,53 kg/m

Number of teeth: 71, 80, 85, 90, 96, 100, 112, 115, 125, 135, 140, 150, 160, 165, 170, 175, 180, 185, 190, 195, 200, 224, 236, 240, 250, 275, 280, 315, 393

Steel tension member permissible force FN: 20250 N

Product range: CONTI® synchrochain carbon belt

Z min single bending standard cable: 28

Ø min Flexion simple câble standard: 375 mm
