BINDER custom 10 AT5 DL BFX Power belts
BRECOFLEX® standard belt
BRECOFLEX® standard belt
Power belts
- Range
- BINDERcustom
- Product range power belts
- BRECOFLEX® standard belt
- Applications
- Precision application

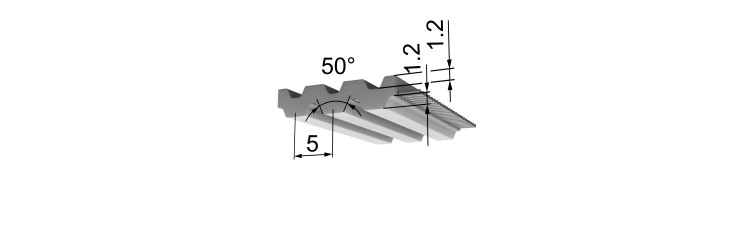

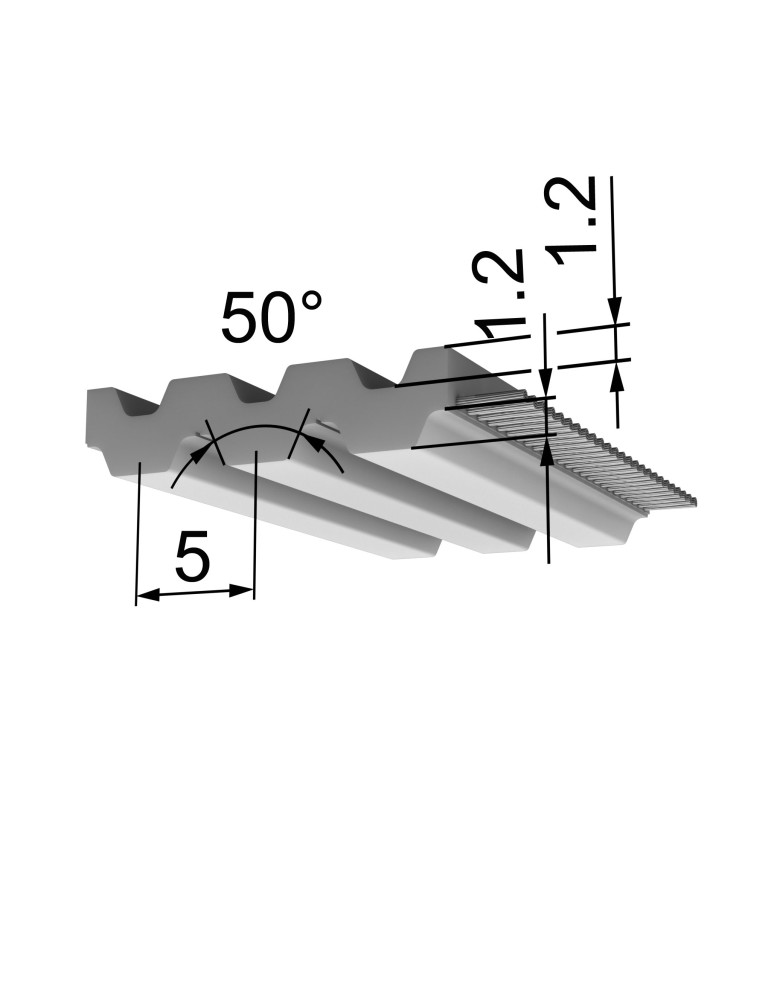

- Profile / Pitch
- AT5
- Profile
- AT
- Pitch
- 5
- Double toothed belt
- DL
- PU Material steel tension member
- White TPU ST5
- Shore hardness steel tension member belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 à 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 à 80 °C
- Winding
- wire
- Minimum length
- ≥900 mm
- Standard belt lengths
- 920, 960, 1600, 2000, 4000, 1400, 1750, 2240, 2800, 900, 1050, 1125, 1500, 1800, 975, 990, 1005, 1020, 1075, 1090, 1100, 1215, 1230, 1380, 1640, 1700, 1900, 2120, 2360, 2500, 2650, 3000, 3150, 3350, 3750, 3800, 4250, 4500, 4750, 5000, 5300, 5600, 6000, 63
- Belt width
- 10 mm
- Weight
- 0,04 kg/m
- Number of teeth
- 180, 220, 300, 400, 500, 280, 210, 225, 350, 184, 192, 195, 198, 201, 204, 215, 218, 243, 246, 276, 320, 328, 340, 360, 380, 424, 448, 472, 530, 560, 600, 630, 670, 710, 750, 760, 800, 850, 900, 950, 1000, 1060, 1120, 1200, 1260, 1340, 1420, 1500
- P max
- ≤ 15 kW
- Steel tension member permissible force FN
- 700 N
- Stainless steel member permissible force FN
- 455 N
- N max
- 10000 tr/min
- V max
- 60 m/s
- Z min alternating bending E cable
- 20
- Z min single bending standard cable
- 25
- Ø min Flexion simple câble standard
- 60 mm
- Z min alternating bending standard cable
- 25
- Ø min alternée simple câble standard
- 60 mm
- Z min single bending E cable
- 20
- Ø min Flexion simple câble E
- 20 mm
- Ø min alternée simple câble E
- 50 mm
- Z min single bending stainless steel cable
- 25
- Ø min Flexion simple câble Inox
- 60 mm
- Z min alternating bending stainless steel cable
- 30
- Ø min alternée simple câble Inox
- 60 mm
