BINDER custom 12 AT5 DL BFX

BRECOFLEX® standard belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERcustom
Product range power belts
BRECOFLEX® standard belt
Applications
Precision application

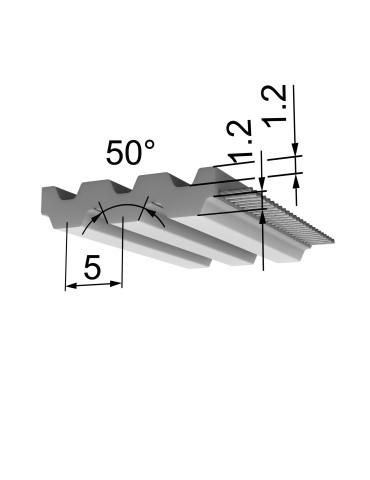

Profile / Pitch
AT5
Profile
AT
Pitch
5
Double toothed belt
DL
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
PU Material stainless steel tension member
TPU AU1 translucent
Shore hardness stainless steel tension member belt
92 ShA
Temperature range of stainless steel tension member belt
0 à 80 °C
Winding
wire
P max
≤ 15 kW
Steel tension member permissible force FN
840 N
Stainless steel member permissible force FN
540 N
N max
10000 tr/min
V max
60 m/s
Minimum length
≥900 mm
Standard belt lengths
920, 960, 1600, 2000, 4000, 1400, 1750, 2240, 2800, 900, 1050, 1125, 1500, 1800, 975, 990, 1005, 1020, 1075, 1090, 1100, 1215, 1230, 1380, 1640, 1700, 1900, 2120, 2360, 2500, 2650, 3000, 3150, 3350, 3750, 3800, 4250, 4500, 4750, 5000, 5300, 5600, 6000, 63
Belt width
12 mm
Weight
0,048 kg/m
Number of teeth
180, 220, 300, 400, 500, 280, 210, 225, 350, 184, 192, 195, 198, 201, 204, 215, 218, 243, 246, 276, 320, 328, 340, 360, 380, 424, 448, 472, 530, 560, 600, 630, 670, 710, 750, 760, 800, 850, 900, 950, 1000, 1060, 1120, 1200, 1260, 1340, 1420, 1500
Z min alternating bending E cable
20
Z min single bending standard cable
25
Ø min Flexion simple câble standard
60 mm
Z min alternating bending standard cable
25
Ø min alternée simple câble standard
60 mm
Z min single bending E cable
20
Ø min Flexion simple câble E
20 mm
Ø min alternée simple câble E
50 mm
Z min single bending stainless steel cable
25
Ø min Flexion simple câble Inox
60 mm
Z min alternating bending stainless steel cable
30
Ø min alternée simple câble Inox
60 mm
