BINDER access 32 ATP15 SYN Power belts
Synchroflex® high power belt
Synchroflex® high power belt
Write your review
BINDER access 32 ATP15 SYN: this high-profile belt is suitable for power applications requiring very good synchronization and no backlash. The belt is therefore produced from a molded sleeve integrally.
Power belts
- Range
- BINDERaccess
- Product range power belts
- Synchroflex® high power belt
- Applications
- High performance application

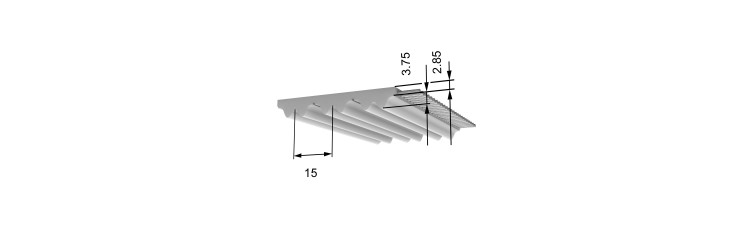

- Profile / Pitch
- ATP15
- Profile
- ATP
- Pitch
- 15
- PU Material steel tension member
- DEDU 8600
- Shore hardness steel tension member belt
- 88 ShA
- Temperature range of steel tension member belt
- -20 à 80 °C
- Winding
- wire
- Standard belt lengths
- 1260, 1125, 1560, 1185 mm
- Belt width
- 32 mm
- Weight
- 0,256 kg/m
- Number of teeth
- 75, 84, 79, 104
- P max
- ≤200 kW
- Steel tension member permissible force FN
- 6750 N
- N max
- 10000 tr/min
- V max
- 50 m/s
- Product range
- Synchroflex® high power belt
- Z min alternating bending E cable
- 25
- Z min single bending standard cable
- 20
- Ø min Flexion simple câble standard
- 100 mm
- Z min alternating bending standard cable
- 30
- Ø min alternée simple câble standard
- 160 mm
- Z min single bending E cable
- 18
- Ø min Flexion simple câble E
- 80 mm
- Ø min alternée simple câble E
- 120 mm
