BINDER access 16 T2,5 SYN DL
BINDER access 16 T2,5 SYN DL
BINDER access 16 T2,5 SYN DL

BINDER access 16 T2,5 SYN DL


Synchroflex® micromechanical belt

BINDER access 16 T2,5 SYN DL: this belt is designed for low load transmissions in a small footprint. It is produced from a molded sleeve integrally.
Power belts
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account

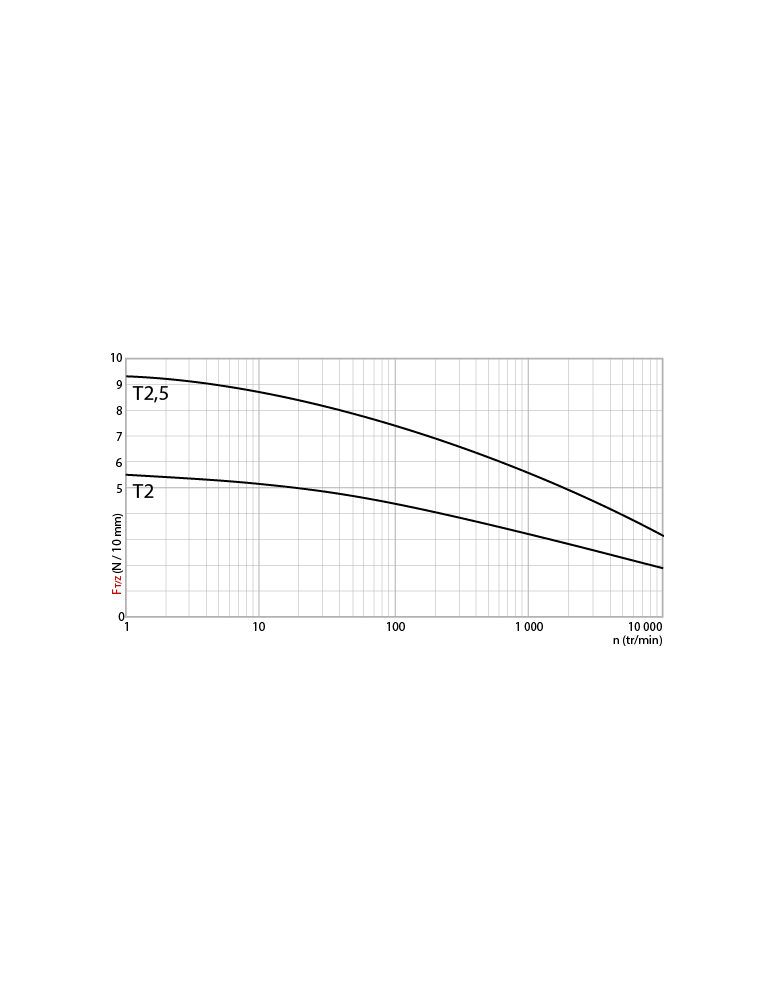

Tangential force transmissible by the teeth
Range
BINDERaccess
Product range power belts
Synchroflex® micromechanical belt
Applications
Micromechanical application

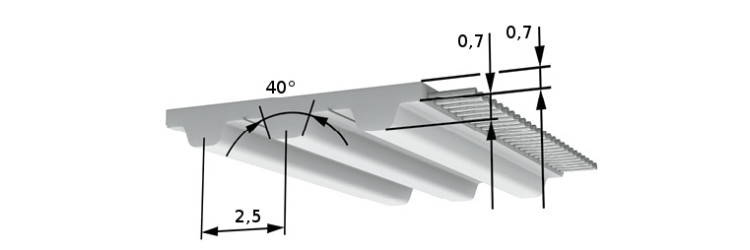

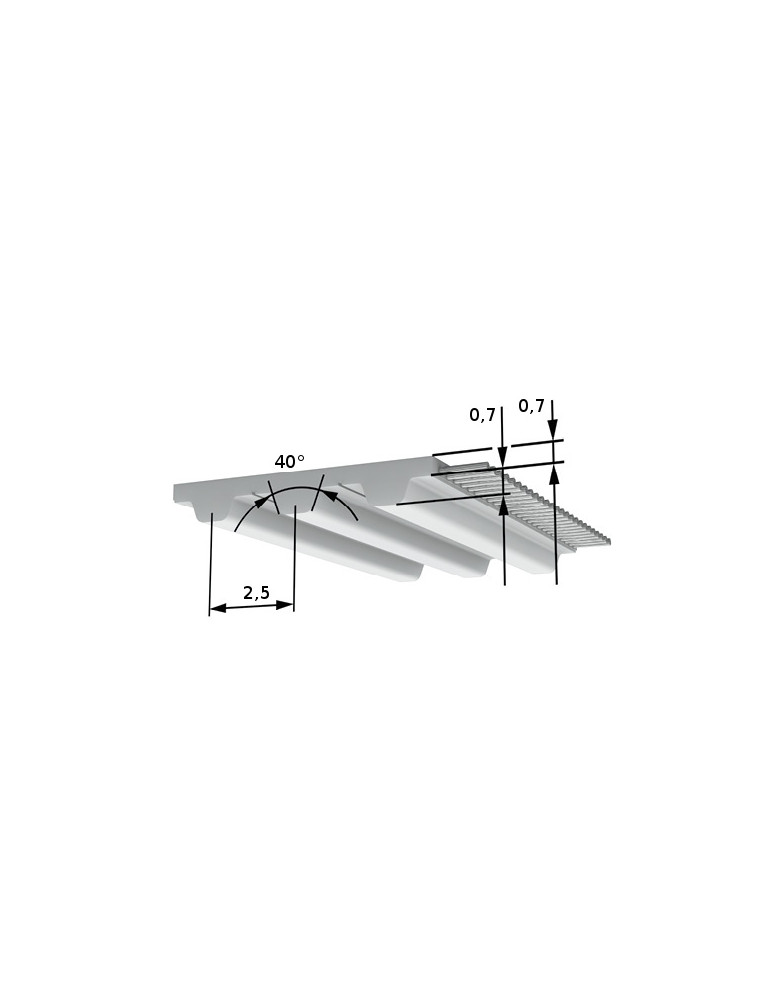

Profile / Pitch
T2,5
Profile
T
Pitch
2
Double toothed belt
DL
PU Material steel tension member
DEDU 8600
Shore hardness steel tension member belt
88 ShA
Temperature range of steel tension member belt
-20 à 80 °C
Winding
wire
Standard belt lengths
317,5, 415, 457,5 mm
Belt width
16 mm
Weight
0,025 kg/m
Number of teeth
127, 166, 183
P max
≤0,5 kW
Steel tension member permissible force FN
195 N
N max
20000 tr/min
V max
80 m/s
Product range
Synchroflex® micromechanical belt
Z min single bending standard cable
10
Ø min Flexion simple câble standard
15 mm
Z min alternating bending standard cable
18
Ø min alternée simple câble standard
15 mm
