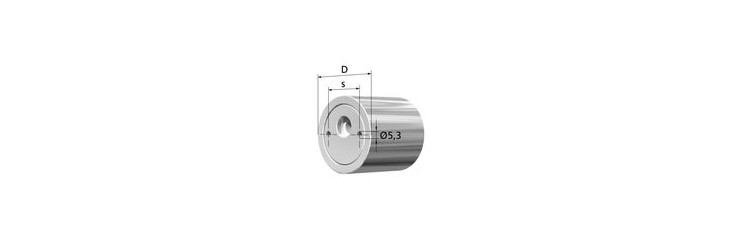

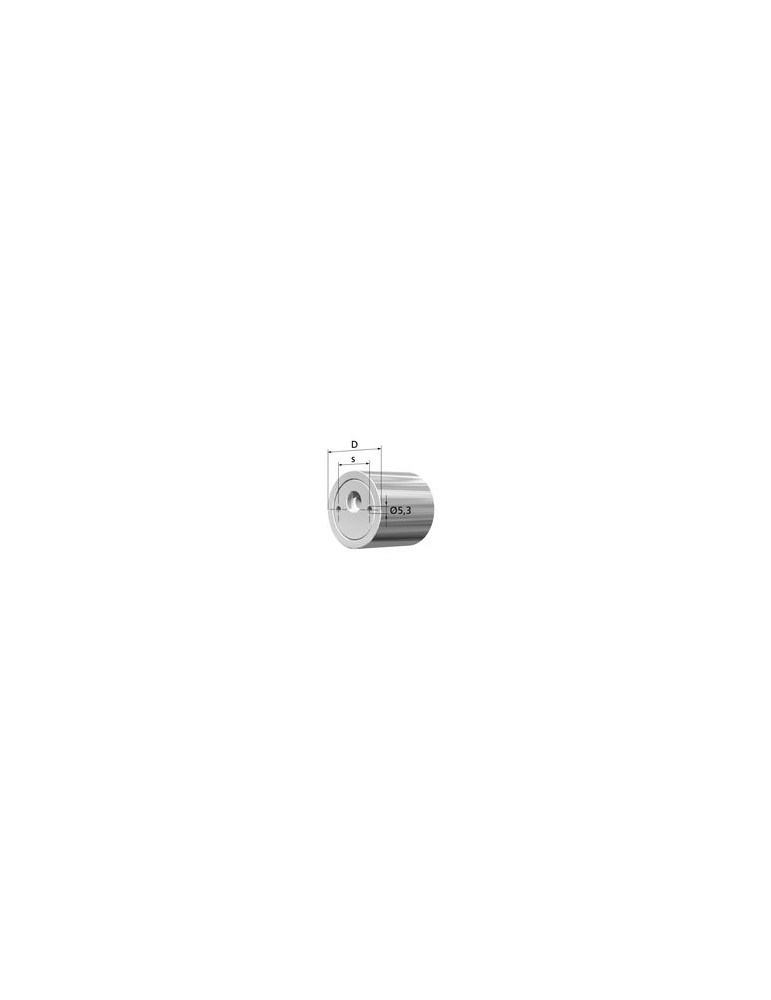

M14/28-0 Rollers
Fixed rollers
Fixed rollers
The M Series Lightweight Fixed Roller is designed for front mounting. The bearings are greased for a long time to a special grease. Temperature resistance: 70 ° C permanently, 120 ° C in short point.
Rollers
- Product range
- Fixed rollers
- Type
- M
- Material
- Al
- Belt maximum width
- 10
- Belt maximum width
- 10 mm
- Dimension B
- 14
- Dimension B
- 14 mm
- Dimension D
- 28
- Dimension D
- 28 mm
- Dimension B2
- 23
- Dimension B2
- 23 mm
- Dimension D1
- 17,5
- Dimension D1
- 17,5 mm
- Dimension B1
- 16
- Dimension B1
- 16 mm
- Product range
- Fixed rollers
- Dynamic load
- 4050
- Dynamic load
- 4050 N
- Static load
- 1710
- Static load
- 1710 N
- Max. speed
- 8000
- Max. speed
- 8000 tr/min
- Profile / Pitch
- Lisse
