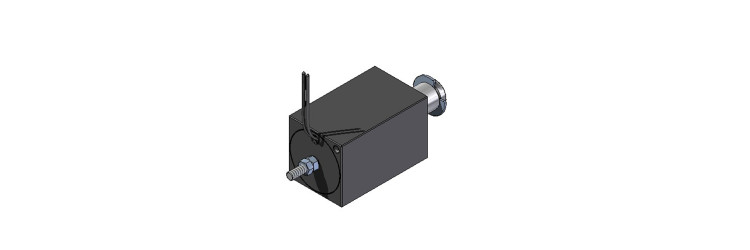

CU40-15/C - DC15% Solenoids
Solenoid for simple operation
Solenoid for simple operation
Solenoid simple maneuvering. These 'Compact Series' electro-magnets, which have a machined parallelepiped design, are very robust and compact. They are designed for intensive use in demanding applications. In upright position, consider the weight of the core.
Solenoids

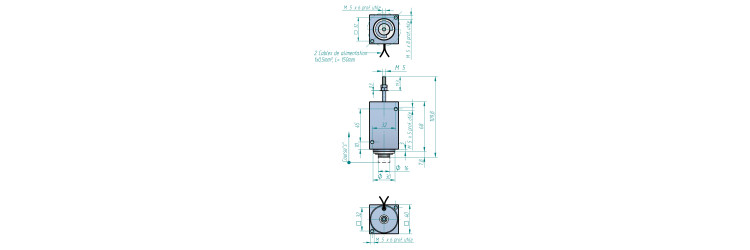

- Body length
- 68 mm
- Width solenoid
- 40 mm
- Coil weight
- 85 g
- Height
- 40 mm
- Total weight
- 665 g
- Stroke
- 15 mm

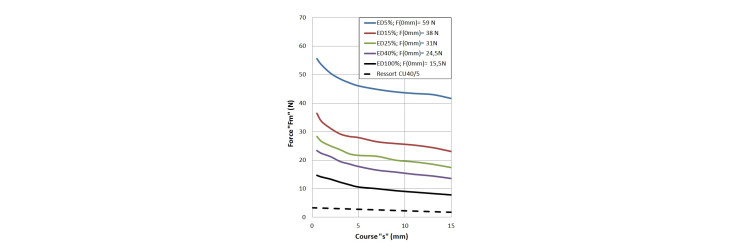

- Force at beginning of stroke
- 23 N
- Force at end of stroke
- 38,4 N
- Internal return spring
- yes
- Duration of attraction
- 82 ms
- Recoil time
- 51 ms
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 1,7 N
- Spring force at the end of the stroke
- 3,2 N
- Options
- Other voltages and duty factors on request.
- Product range
- Solenoid for simple operation
- Duty cycle
- 15 %
- Duration of the cycle for the calculation
- 4 min
- Power
- 82 W
- Connection
- Free wires
- Insulation class
- E
- Standard voltages
- 24 V
- IP protection
- IP 40
