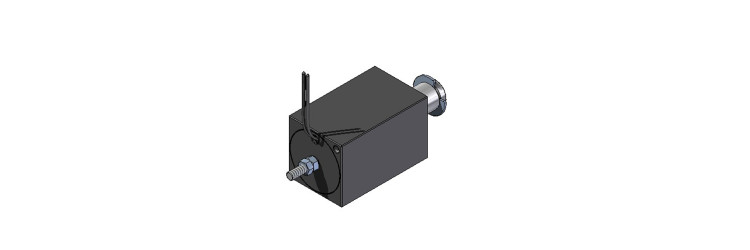

CU40-15/C - DC5% Solenoids
Solenoid for simple operation
Solenoid for simple operation
CU40-15/C - DC5%: with its machined parallelepiped design, this simple “Compact Series” electromagnet is very robust and compact. It is designed for intensive use in demanding applications. In a vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 68
- Body length
- 68 mm
- Width solenoid
- 40
- Width solenoid
- 40 mm
- Coil weight
- 85
- Coil weight
- 85 g
- Height
- 40
- Height
- 40 mm
- Total weight
- 665
- Total weight
- 665 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 1,7
- Spring force at the beginning of the stroke
- 1,7 N
- Spring force at the end of the stroke
- 3,2
- Spring force at the end of the stroke
- 3,2 N
- Options
- Other voltages and duty factors on request.
- Stroke
- 15
- Stroke
- 15 mm

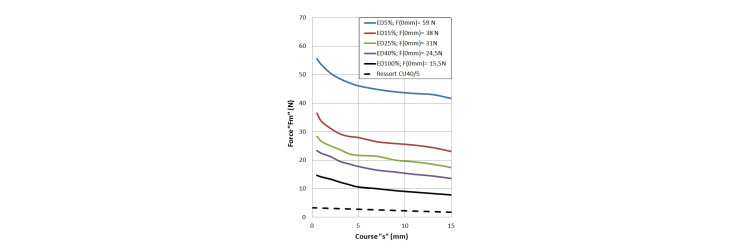

- Force at beginning of stroke
- 41,7
- Force at beginning of stroke
- 41,7 N
- Force at end of stroke
- 59
- Force at end of stroke
- 59 N
- Internal return spring
- yes
- Duration of attraction
- 86
- Duration of attraction
- 86 ms
- Recoil time
- 54 ms
- Recoil time
- 54
- Duty cycle
- 5
- Duty cycle
- 5 %
- Duration of the cycle for the calculation
- 4
- Duration of the cycle for the calculation
- 4 min
- Power
- 247
- Power
- 247 W
- Connection
- Free wires
- Insulation class
- E
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP 40
