ECH40-10 - DC40% Solenoids
Solenoid for simple operation
Solenoid for simple operation

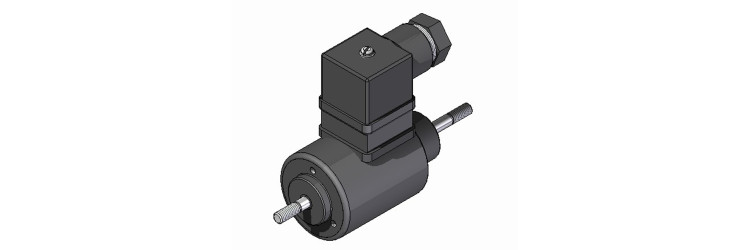

ECH40-10 - DC40% : with its machined cylindrical design, this robust single-action electromagnet delivers high forces. In the vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for simple operation

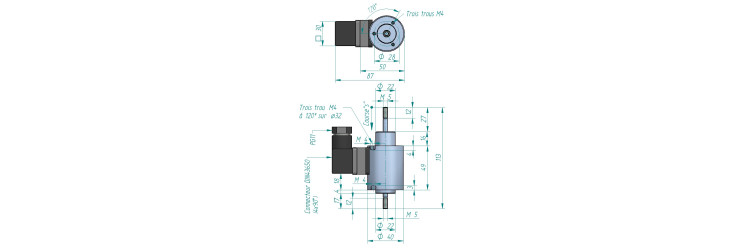

- Body length
- 69
- Body length
- 69 mm
- Coil weight
- 35
- Coil weight
- 35 g
- Total weight
- 250
- Total weight
- 250 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 2
- Spring force at the beginning of the stroke
- 2 N
- Spring force at the end of the stroke
- 4,4
- Spring force at the end of the stroke
- 4,4 N
- Diameter
- 40 mm
- Diameter
- 40
- Options
- Other voltages and duty factors on request.
- Stroke
- 10
- Stroke
- 10 mm

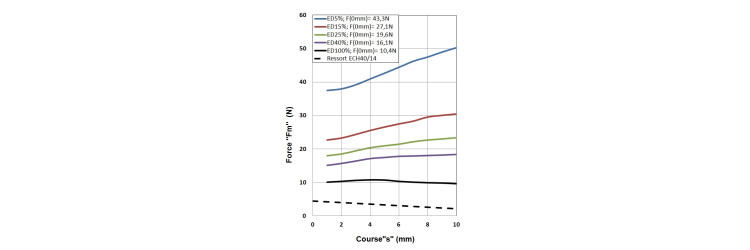

- Force at beginning of stroke
- 18
- Force at beginning of stroke
- 18 N
- Force at end of stroke
- 16
- Force at end of stroke
- 16 N
- Internal return spring
- yes
- Duration of attraction
- 95
- Duration of attraction
- 95 ms
- Recoil time
- 57
- Recoil time
- 57 ms
- Duty cycle
- 40
- Duty cycle
- 40 %
- Duration of the cycle for the calculation
- 3
- Duration of the cycle for the calculation
- 3 min
- Power
- 30
- Power
- 30 W
- Connection
- IP65 connector
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP40
