ECH40-10 - DC25% Solenoids
Solenoid for simple operation
Solenoid for simple operation

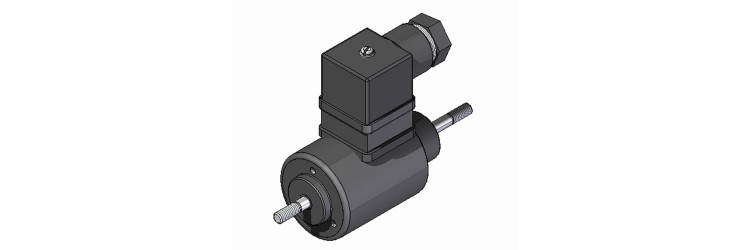

ECH40-10 - DC25% : with its machined cylindrical design, this robust single-action electromagnet delivers high forces. In the vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for simple operation

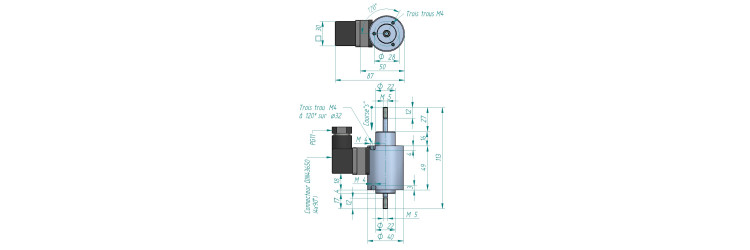

- Body length
- 69
- Body length
- 69 mm
- Coil weight
- 35
- Coil weight
- 35 g
- Total weight
- 250
- Total weight
- 250 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 2
- Spring force at the beginning of the stroke
- 2 N
- Spring force at the end of the stroke
- 4,4
- Spring force at the end of the stroke
- 4,4 N
- Diameter
- 40
- Diameter
- 40 mm
- Options
- Other voltages and duty factors on request.
- Stroke
- 10 mm
- Stroke
- 10

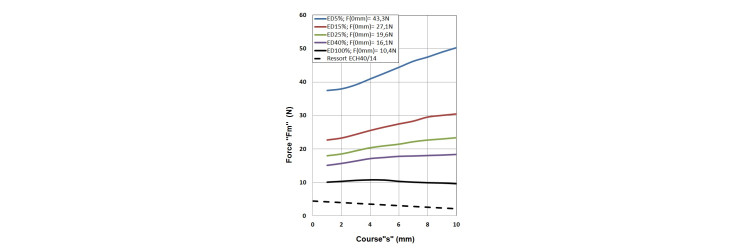

- Force at beginning of stroke
- 23
- Force at beginning of stroke
- 23 N
- Force at end of stroke
- 19,5
- Force at end of stroke
- 19,5 N
- Internal return spring
- yes
- Duration of attraction
- 84
- Duration of attraction
- 84 ms
- Recoil time
- 51
- Recoil time
- 51 ms
- Duty cycle
- 25
- Duty cycle
- 25 %
- Duration of the cycle for the calculation
- 3
- Duration of the cycle for the calculation
- 3 min
- Power
- 45
- Power
- 45 W
- Connection
- IP65 connector
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP40
