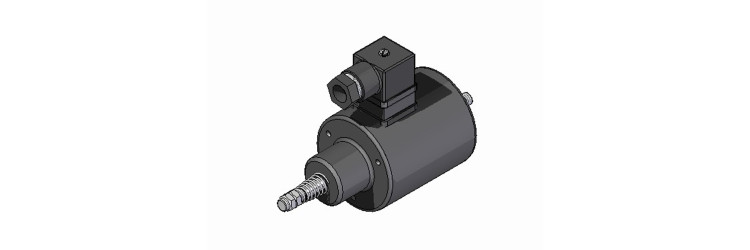

ECH65-15 - DC5% Solenoids
Solenoid for simple operation
Solenoid for simple operation
ECH65-15 - DC5% : with its machined cylindrical design, this robust single-action electromagnet delivers high forces. In the vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 108,5 mm
- Body length
- 108,5
- Coil weight
- 190
- Coil weight
- 190 g
- Total weight
- 1700 g
- Total weight
- 1700
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 5,4
- Spring force at the beginning of the stroke
- 5,4 N
- Spring force at the end of the stroke
- 21,7
- Spring force at the end of the stroke
- 21,7 N
- Diameter
- 65
- Diameter
- 65 mm
- Options
- Other voltages and duty factors on request.
- Stroke
- 15
- Stroke
- 15 mm
- Force at beginning of stroke
- 177
- Force at beginning of stroke
- 177 N
- Force at end of stroke
- 385
- Force at end of stroke
- 385 N
- Internal return spring
- yes
- Duration of attraction
- 181
- Duration of attraction
- 181 ms
- Recoil time
- 115
- Recoil time
- 115 ms
- Duty cycle
- 5
- Duty cycle
- 5 %
- Duration of the cycle for the calculation
- 3
- Duration of the cycle for the calculation
- 3 min
- Power
- 545
- Power
- 545 W
- Connection
- IP65 connector
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP40
